> Pad printing machine

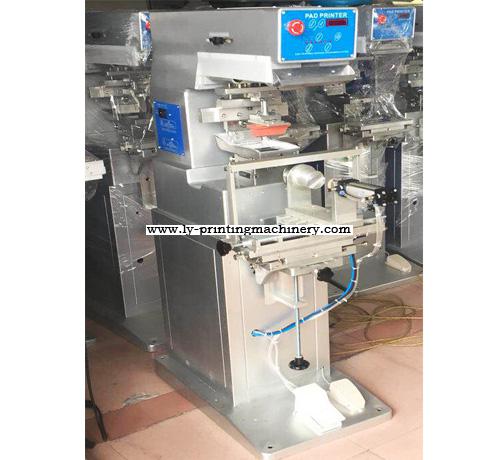

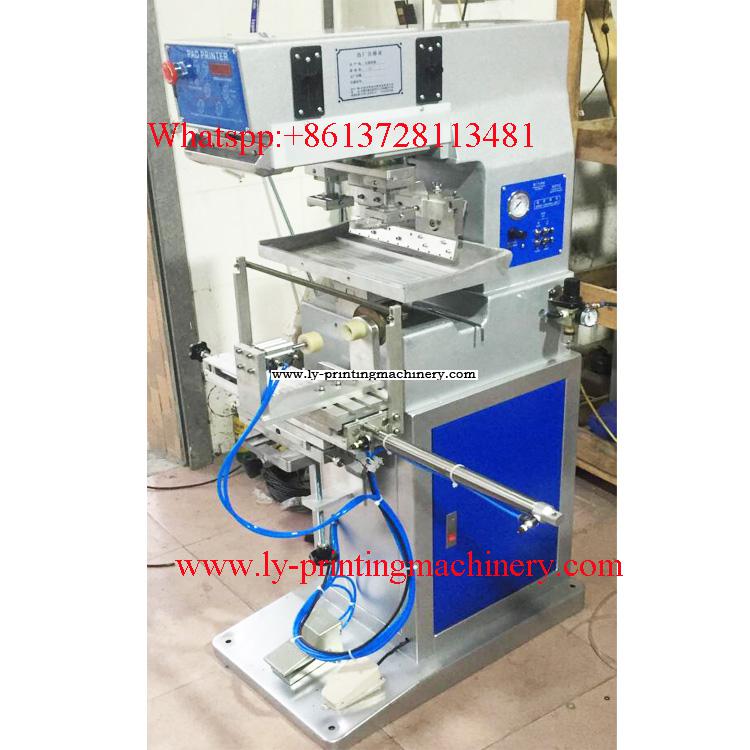

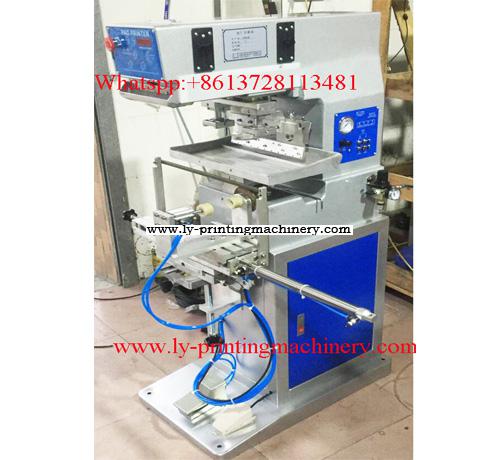

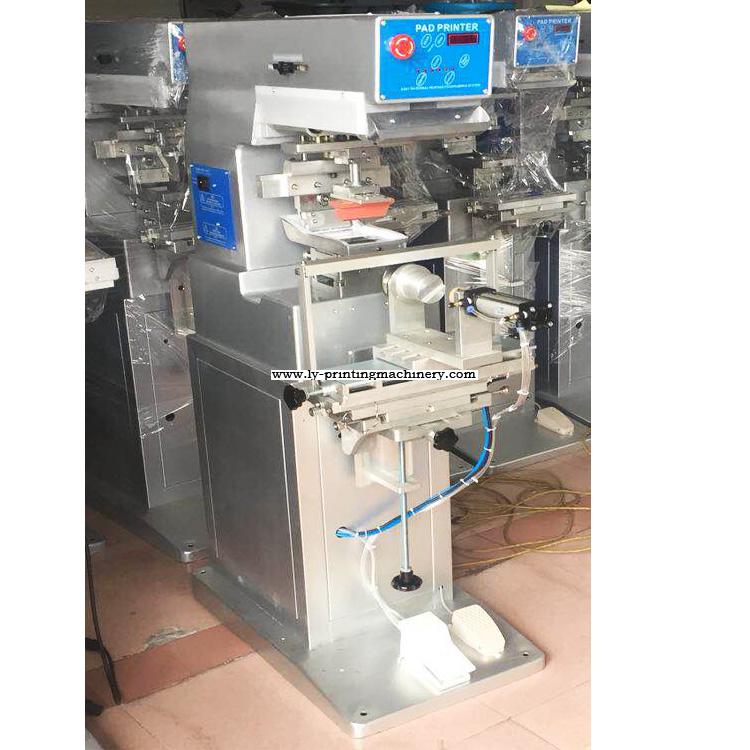

360 degree 1 color pad printing machine for round items

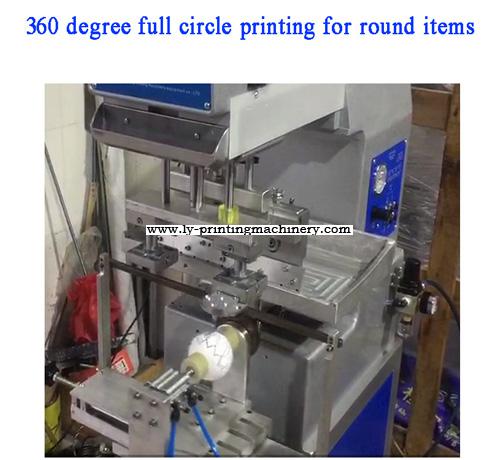

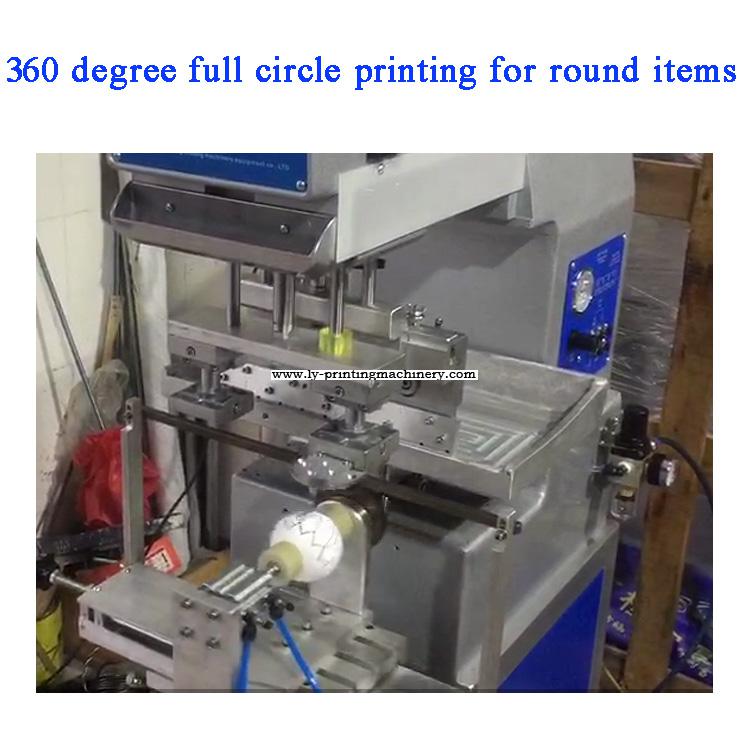

360 degree printing
Full circle printing
Printing size can be customized
single color printing
Product description: LY-MP1-250RF
Inquiry Now

PRODUCT INTRODUCTION

Description:

LY-MP1-250RF is a special 1 color pad printing machine for round items , this machine can be printed 360 degree full circle for ball,pen, tube,cylinder，bottle ,cup.......Etc.

Body adpot cast aluminium , so that the life is durable, it can print multicolor , high printing quality, All main parts are imported , cylinder from SMC

Advantages:
1.Microprocessor control for each function makes operation easy;
2.4-Digit auto counter built-in;
3.Coin aluminium structure ensures sturdiness operation;
4.ink roller used for ink applying is easy to remove and clean;
5.Independent stroke and speed adjustment for pad up/down;
6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7.Adjustable printing speed meets different printing requirements;
8.It is available that ink roller keeps working while pad doesn't lower down that so that ink will not easily become dry

Specifications:
1. Model No: LY-MP1-250RF
2. Printing position:360 degree full circle
3. Printing Colors: 1
4. Plate area: 150*250mm (Can be customized )
5. Printing area; 120x 220mm
6. Printing diameter:70mm (Can be customized )
6. Max printing speed: 1500PCS/H
7. Wattage: 220V/ 50Hz:
8. Air pressure: 0.4-0.6Mpa
9. Machine size(LxWxH):1100×680×1480mm

10. Machine weight: 135kg
