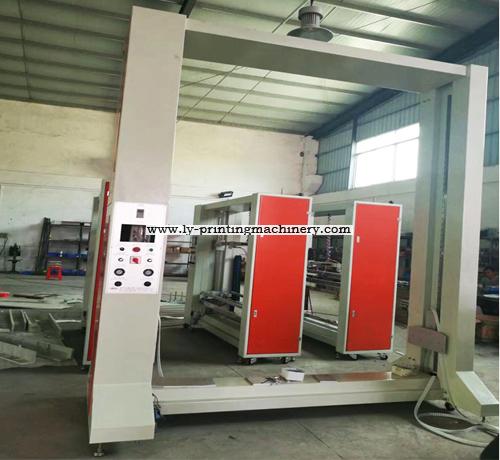

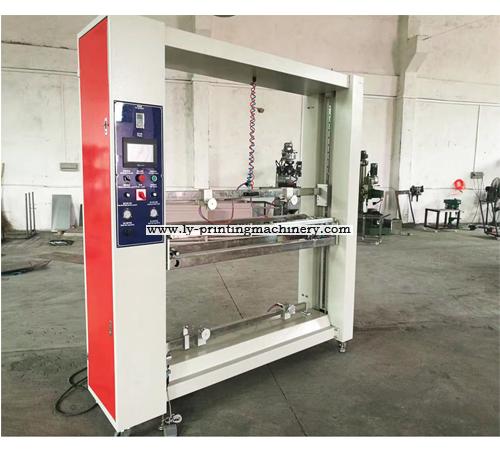

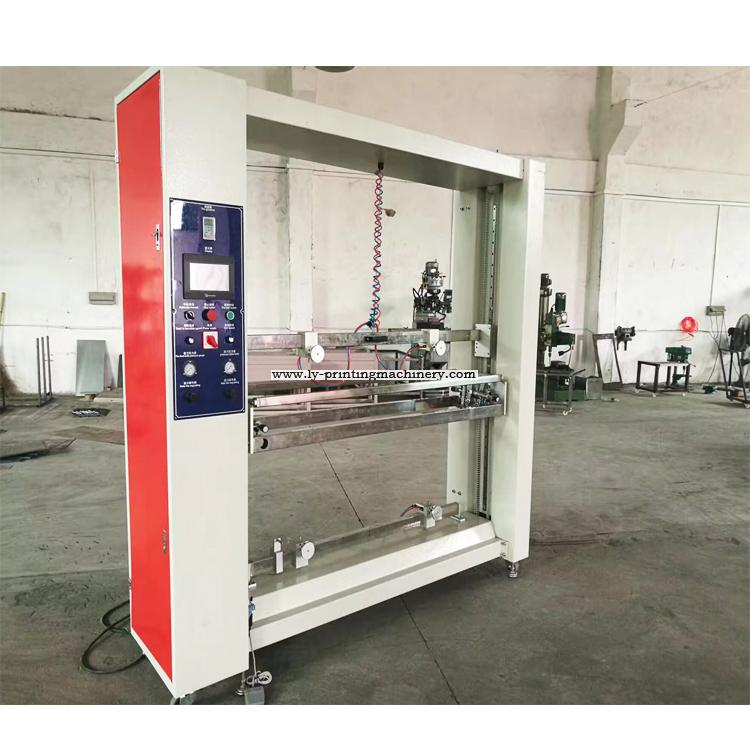

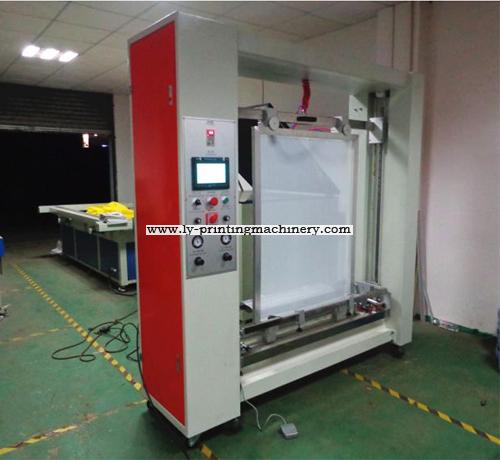

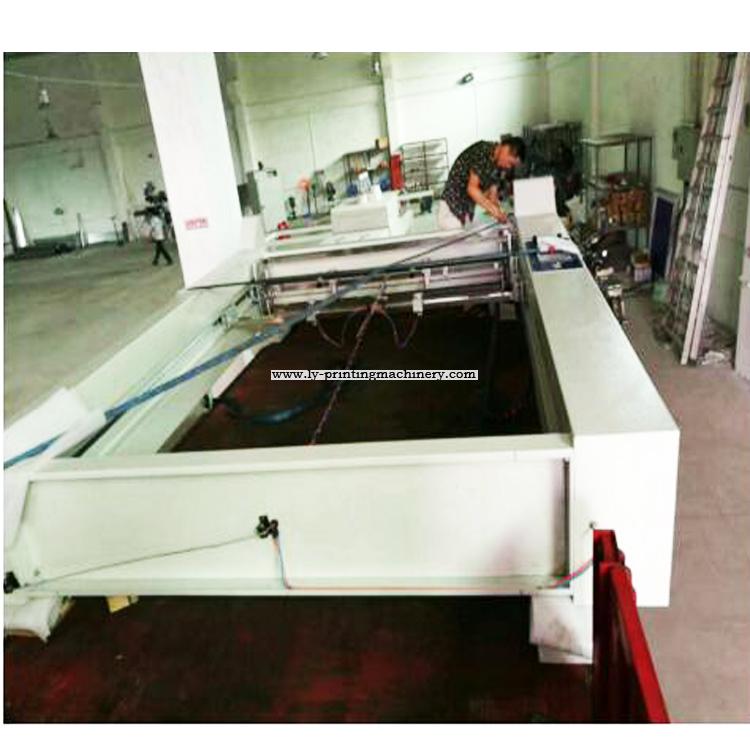

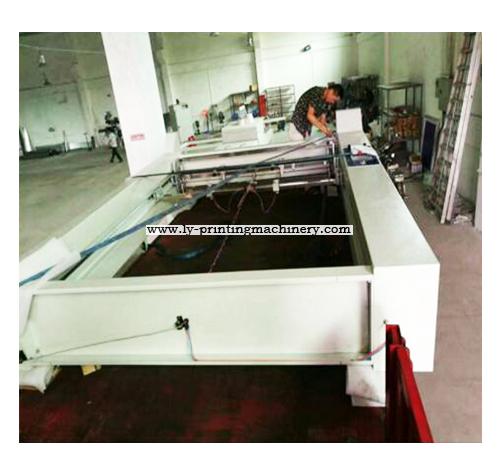

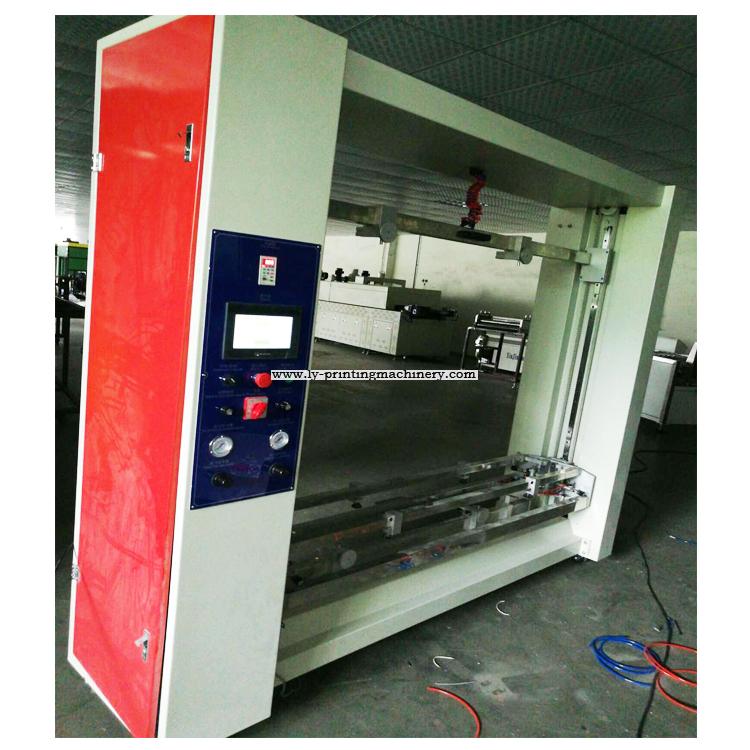

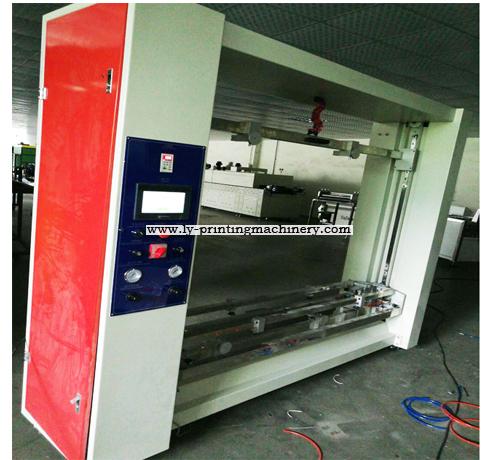

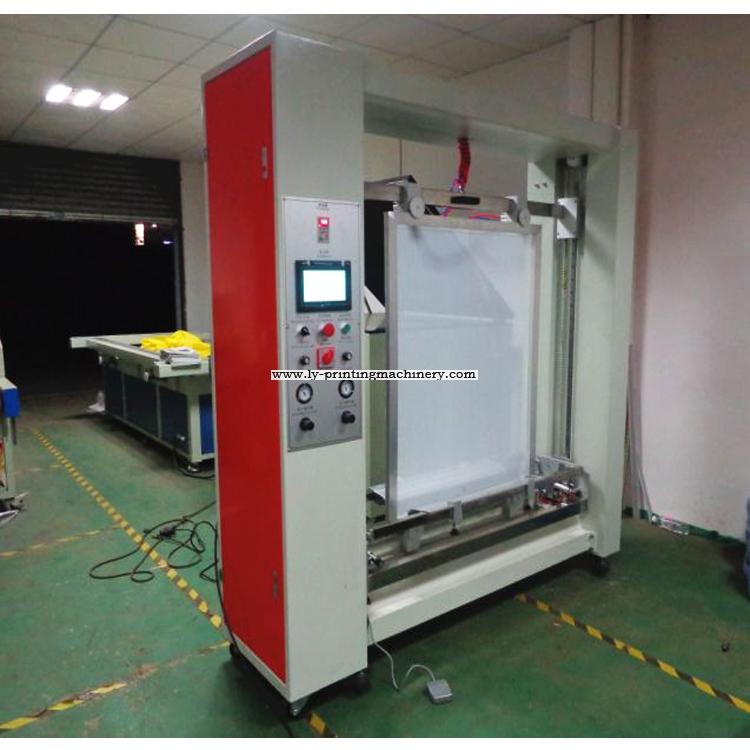

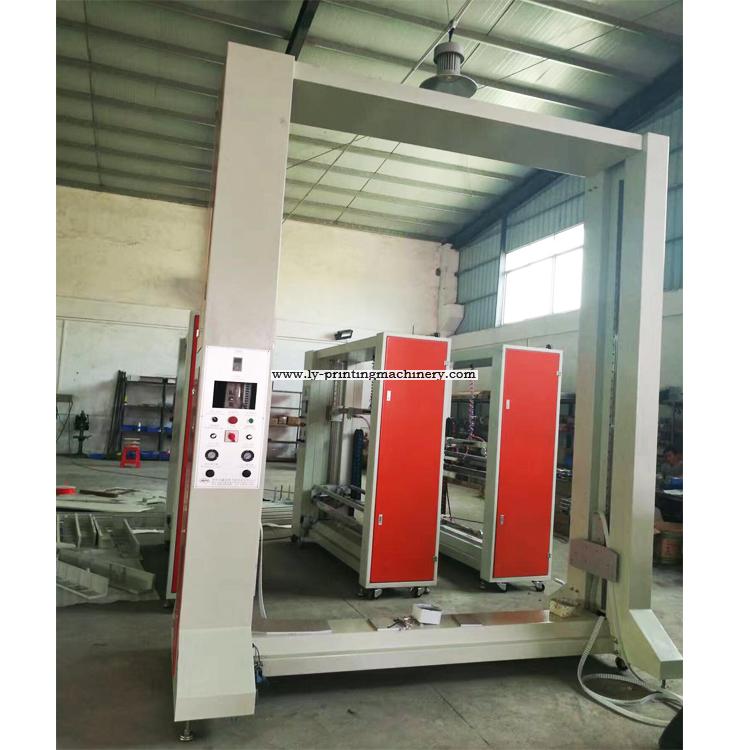

Auto silk screen emulsion coater

Auto silk screen emulsion coater

Technical Specification:

1.Max. Frame Size:1000×1100mm

2.Max coating size:900x1000mm

3.Min. Frame Size:300×300mm
4.Coating Speed:0-200mm/sec
5.Air Source:6 kg/cm2
6.Voltage:220V
7.Gross Power:800W
8.Weight:450kg
9.Dimension (W×D×H):1950×600×2000mm

Any size can be changed the specification by customer's requirement.

Application:
Mainly use for screen plate / silk screen frame emulsion high precision coating

Technology specialties:
Adopt with PLC + touch screen control, easy to operate and reliable
Adopt with advance import motor, make sure minimum vibration and smooth coating
Top precise coating effects, accuracy : ±0.001mm
Interactive system, coating time adjustable, as well as speed

Characteristics of  Coating Machine:

1.It can adjust the number of coating of both sides simply.
Through A.C Motor Inverter Control, it offers precise and uniform coating.
2.It can adjust the speed of basket freely.
3.It is designed to obtain precise thickness of coating with uniform pressure, and it scarcely has vibration through inverter control.

4.this coating machine is easy to set up and move the screen plate, and convenient for operation.
