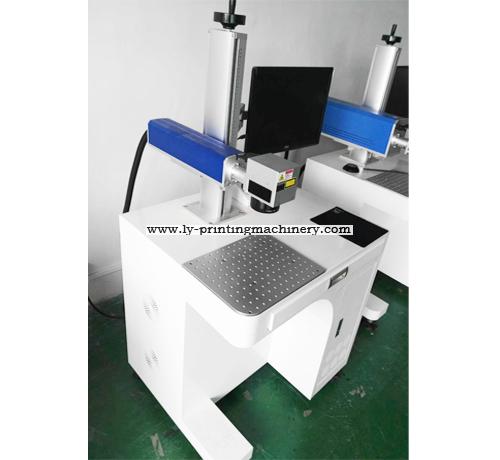

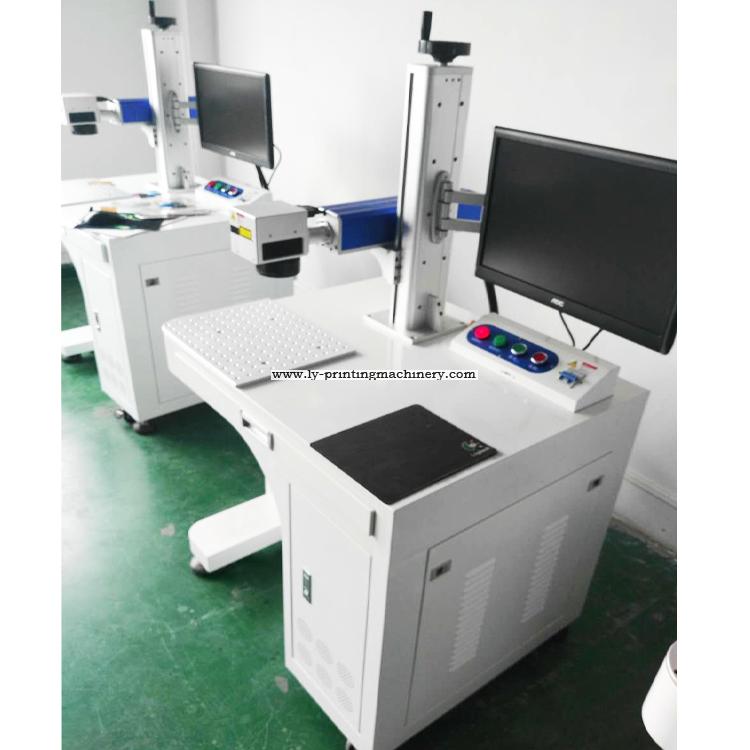

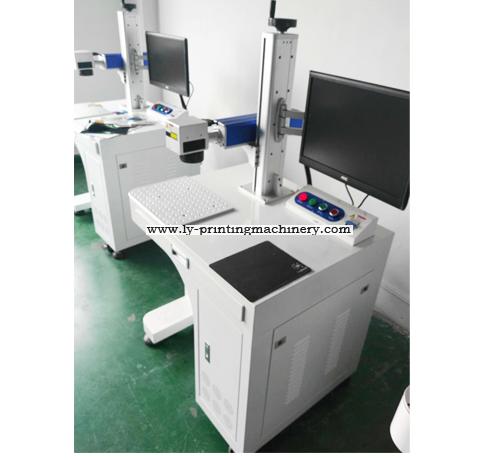

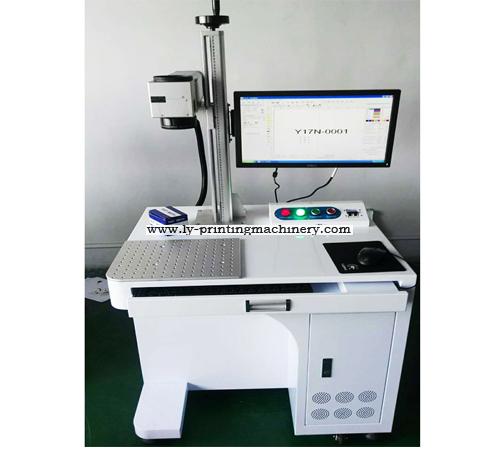

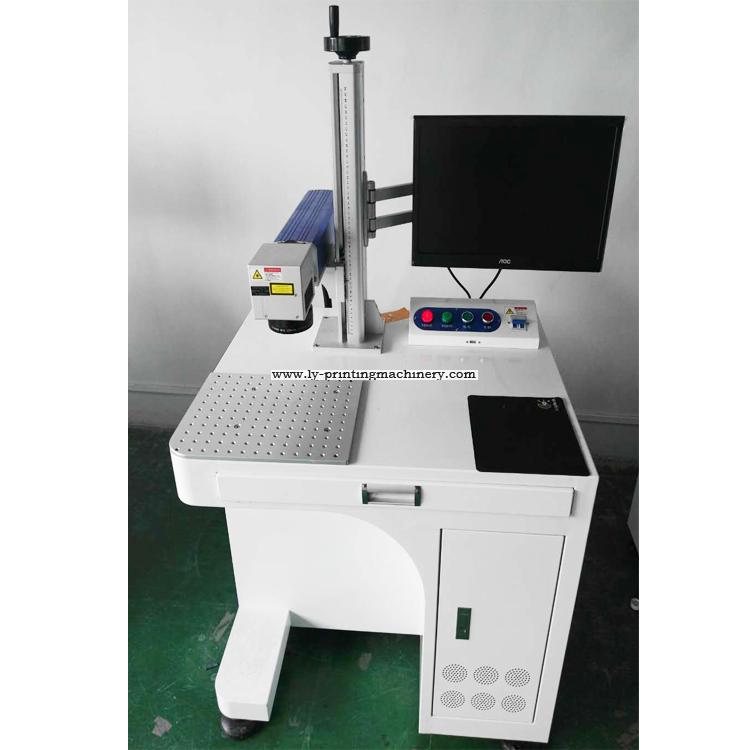

20w Fiber laser marking machine

20w Fiber laser marking machine
laser marking machine
any products can be used
Product description: LY-F20W
Inquiry Now

PRODUCT INTRODUCTION

Specification

1.Model:LY-F20W

2.Laser wavelength (nm) 1060~1085

3.Average output power 20W

4.Laser beam quality(M2) <1.5

5.Light spot diameter(mm) 6~8

6.Power regulation scope 10%~100%

7.Cooling system Air cooling

8.Working temperature(℃) 0~40

9.Power consumption (W) 400W

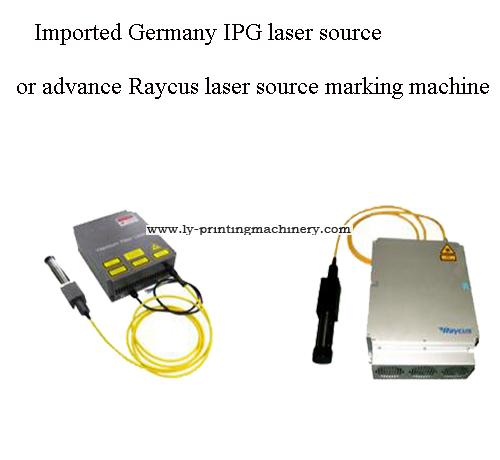

10.Laser source Raycus / IPG laser source

11.Software EzCad (JCZ control card )

12.Support vectorgraph format AI,PLT,DXF,DST etc

13.Support picture format bmp,jpg,gif,tga,png,tif etc

14.Support operating system Win7 32bit /Win7 64bit

15.Marking area: 200x200mm

16.Marking depth: 0.5-0.8mm

17.Machine size:L800*W650*H1400mm

18.Machine weight: 125Kg

19 Packing size:L950*W820*H1130mm

20 Packing weight: 145Kg

Our Fiber laser marking machine is developed and produced by us with the world newest laser technology.It belongs to the third generation system of laser technology .

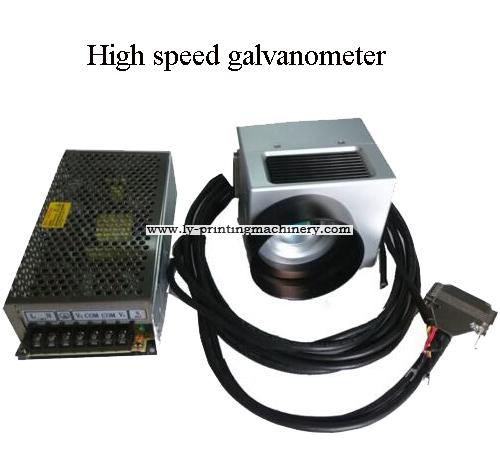

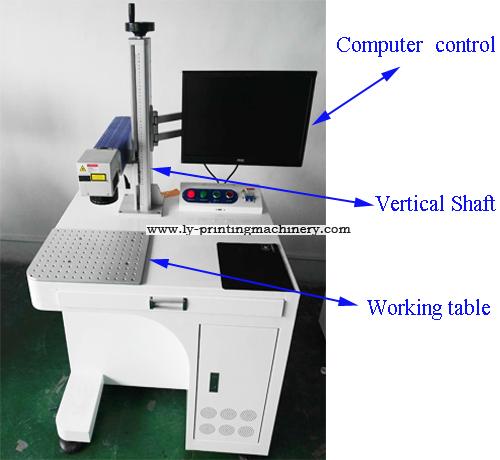

Adopting fiber laser output the laser ,then using ultra high-speed scanning galvanometer system to marking. The critical component use long lifetime stable device. It has lots of advantages : novel appearance,unique structure,convenient operation,high modulating frequency,fast marking speed,high precision,stable performance .It can widely used in various metal and non-metallic surface to output the permanent mark

Application

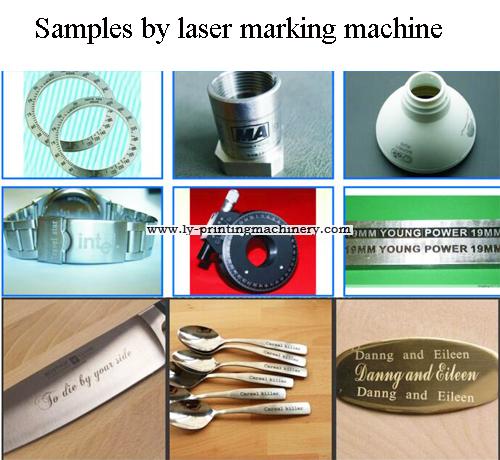

It can engrave and mark on the surface of many metal and non-metallic ,widely used in the marking of below area :industrial bearings,gear,various automobile components,hardware tools,aerospace components,IC chip,computer accessories,watch,electronic and communication products,wire and cable,food package,jewelry etc .

Its material includes metal such as gold,silver,copper,aluminum,stainless steel,hard metal alloy ,chromeplate,titanize etc, and other non-metallic material such as ceramic,PVC,plastic,epoxy resin,leather and so on .

Feature
1.High electro-optic conversion efficiency;
2.Low power consumption, stability laser output;

3.High quality beam, consumable free,small machine dimension ;
