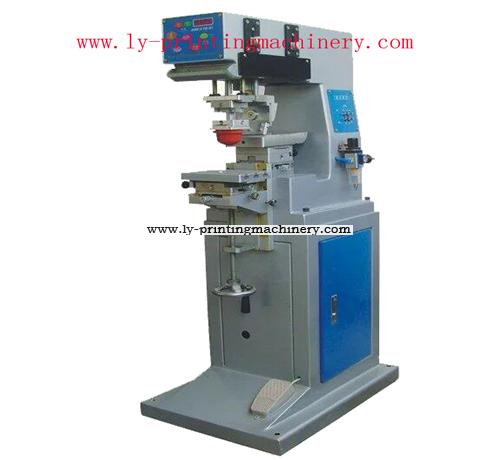

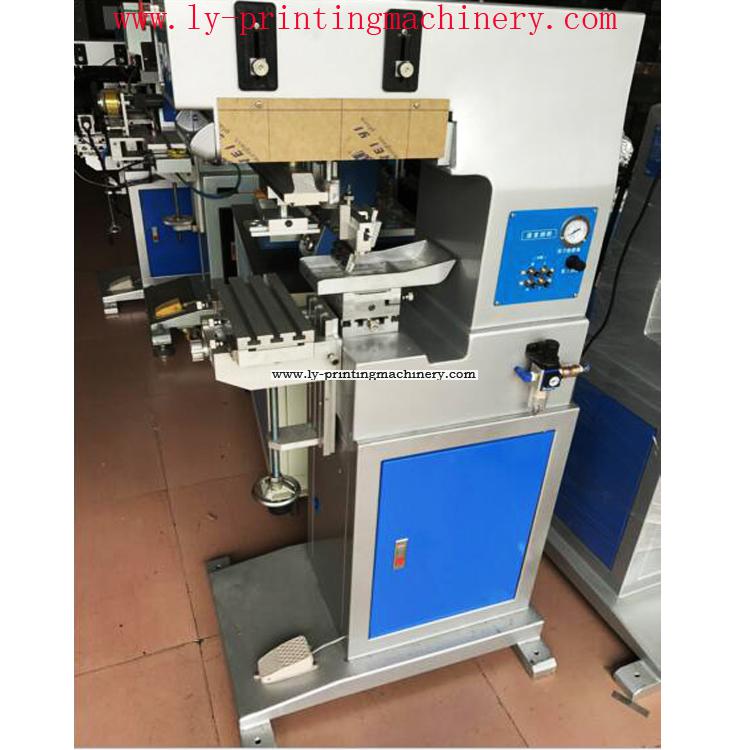

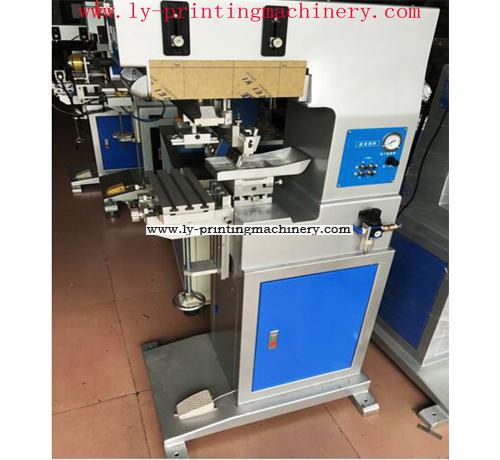

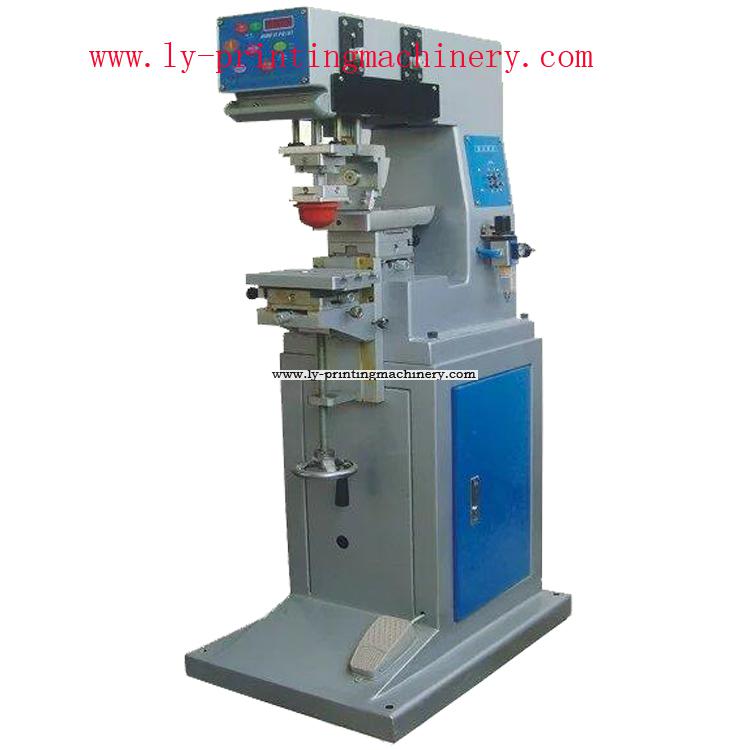

100x150mm ink tray 1 color pad printer

Description:

Printing area: plastic products, same as toys, gift products, pen, PE products, golf ball package products, , household, stationery, electron products, mobile phone, bottle. Metals products, furniture fittings. ETC.

Advantages:
1.Microprocessor control for each function makes operation easy;
2.4-Digit auto counter built-in;
3.Coin aluminium structure ensures sturdiness operation;

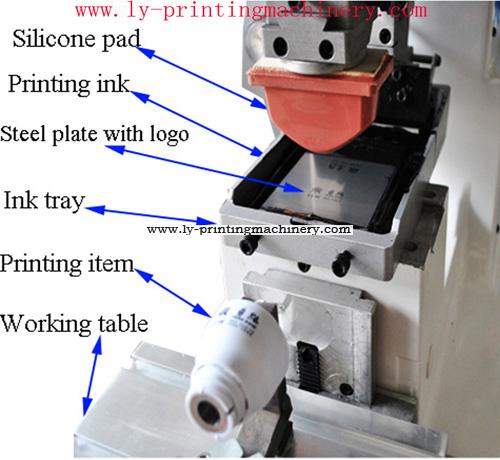

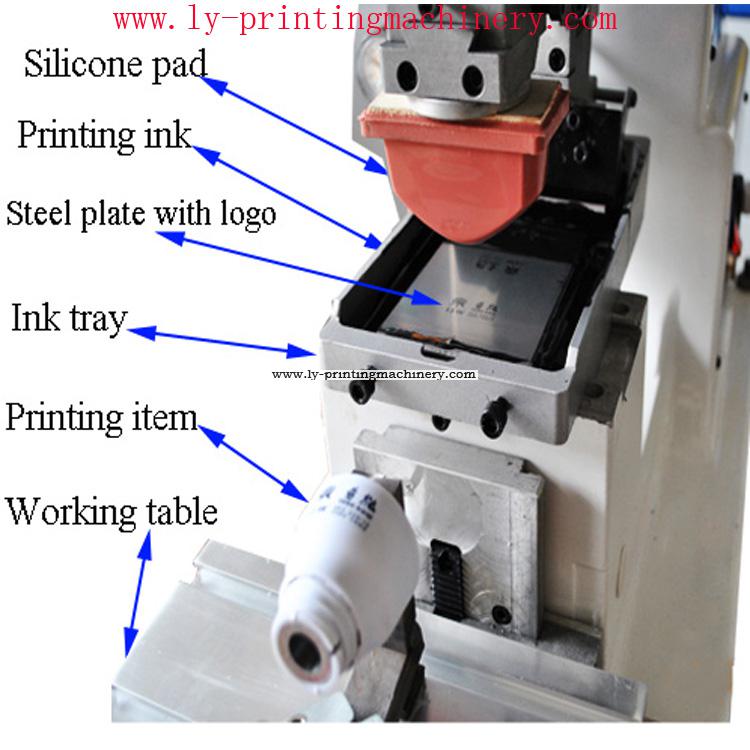

4.ink roller used for ink applying is easy to remove and clean;
5.Independent stroke and speed adjustment for pad up/down;
6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7.Adjustable printing speed meets different printing requirements;
8.It is available that ink roller keeps working while pad doesn't lower down that so that ink will not easily become dry

Specifications of LY-MP1-S150
1.Model NO:LY-MP1-S150
2.Operation: Pneumatic
3.Printing Colors: 1
4.Plate area: 100*150mm
5.Printing area; 85*135mm
6.Max printing speed: 2000PCS/H
7.Wattage: 220V/ 50HZ 110V/60HZ
8.Air pressure: 0.4-0.6Mpa
9.Machine size(LxWxH): 830x530x1430mm
10.Machine weight: 118kg
11.Cylinder: from SMC
