> Pad printing machine

4 color ceramic tableware big pad printer With full Servo motor

Ceramic tableware bowl plate pad printer
Wooden bowl dish pad printer
inside outside 4 color printing
Plastic melamine bowl dish pad printer
Product description: LY-TC004
Inquiry Now

PRODUCT INTRODUCTION

4 color ceramic tableware big pad printer With full Servo motor

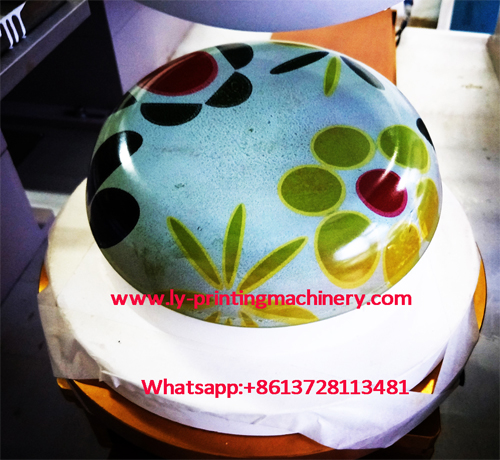

This machine most suitable for printing all kinds of shape ceramic,plastic ,melamine ,metal , wooden plates, bowls, dishes,pans ,pots ,fry pans ,trays, spoon...Etc, with high printing quality,max printing area can reach 380*380mm, Very powerful machine. it can be printed inside ,outside ,edge and oddly shape.

Tech Parameters:

1.Model :LY-TC004

2.Max. Plate size: 400*400mm

3.Max Printing area: 380*380mm

4.Max. Printing speed: 200PCS/h
5.Printing colors: 4
6.Open tray stroke:500mm
7.Shuttle stroke:660mm
8.Machine Size:2600x1460x2500mm
9.Machine Weight: 1550Kg
10.Voltage power: 380V/ 50HZ
11. Air consumption:8 bar
12.With 2 servo motors left and right by PLC control
13.With 4 servo motors for up and down by PLC control
14. With CE certificate

Feature
This machine is non-standard big size 4 color pad printer with PLC control system, it is adopted micro digital computer to control , With servo motor to run for shuttle working, High quality with precise printing effective.

Application

With big open tray size , printing area can reach 380x380mm, suitable for printing variety ceramic bowl, ceramic plate, Kitchen ware, Pan,bowl, household ETC.
