> Pad printing machine

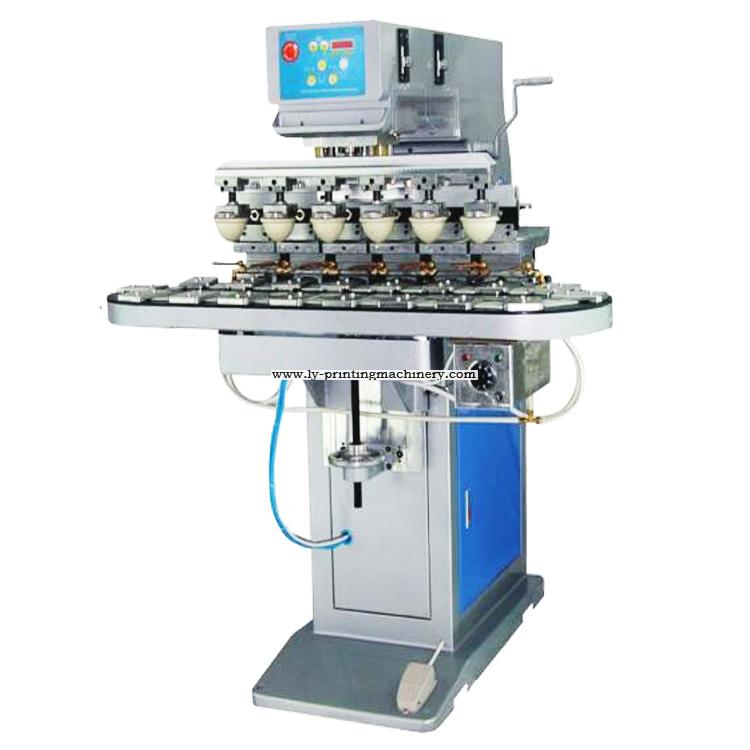

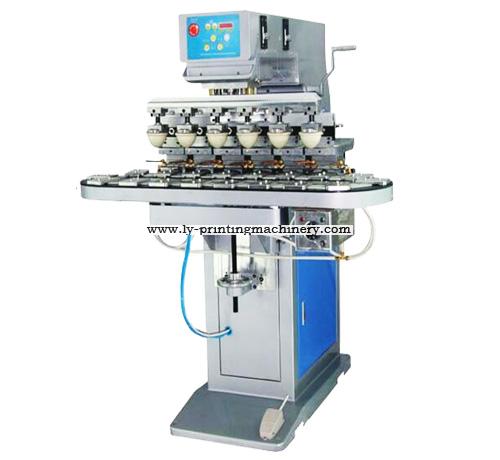

6 color ink tray tampo printer with conveyor
- 6 color pad printer
- conveyor pad printer
- tampo printer
- print 6 color at the same time
- Product description: LY-MP6-S150
PRODUCT INTRODUCTION
6 color pad printing machine is equipped with a station's conveyor belt 18 -22 working station printing machine, six-color printing process in the other printers do not need to place the bit is reset only product, has been continuous high-speed printing, significantly increased production efficiency ideal for large multi-color overlay order. The machine features designed to facilitate the replacement of the rise of ink, cleaning ink tray, easy to maintain.
For example, for a variety of printed materials: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface arc printing products, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts and so on..
Feature:
Specifications︰
LY-MP6-S150 (18 working station)
1.Max plate size: 100×150 mm;
2.Max worktable area: 90×125mm;
3.Max printing area: 85×130mm;
4.Max printing speed:1500pcs/hr;
5.Colour number: 6;
6.Air consumption: 330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke: 125mm;
9.Station number: 18
1.Total micro computer controlled operation;
2.Auto four digit counter built-in;
3.ink covering by ink roller ;
4.Fully Coin aluminium structure which is sturdy;
5.Independent pad stroke and speed control;
6.Printing speed adjustable to meet with different needs;
7."Inking twice, printing once" to get better ink covering;
For example, for a variety of printed materials: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface arc printing products, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts and so on..
Feature:
Specifications︰
LY-MP6-S150 (18 working station)
1.Max plate size: 100×150 mm;
2.Max worktable area: 90×125mm;
3.Max printing area: 85×130mm;
4.Max printing speed:1500pcs/hr;
5.Colour number: 6;
6.Air consumption: 330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke: 125mm;
9.Station number: 18
Specifications of LY-TCY6-200
1.Print Color: 6 color
2.Work station: 18Pcs
3.Cylinder head up and down distance: 75mm
4.Cylinder stroke distance: 225mm
5.Work Table size: 90 × 125mm
6.Standard plate size: 100 × 200mm (4 '× 8')
7.Maximum printing area: 80 × 180mm
8.Maximum speed: 1300 Pcs / Hr
9.Voltage: 110V/220V 50Hz
10.Power: 35 W
11.Air requirements: 6 Bar
12.Air Consumption: 90 Liter / Min
13.Machine size: 1220 × 1220 × 1500 mm
14.Machine Weight: 295Kg
1.Total micro computer controlled operation;
2.Auto four digit counter built-in;
3.ink covering by ink roller ;
4.Fully Coin aluminium structure which is sturdy;
5.Independent pad stroke and speed control;
6.Printing speed adjustable to meet with different needs;
7."Inking twice, printing once" to get better ink covering;
8. SMC Cylinder& FESTO Pneumactic Parts
