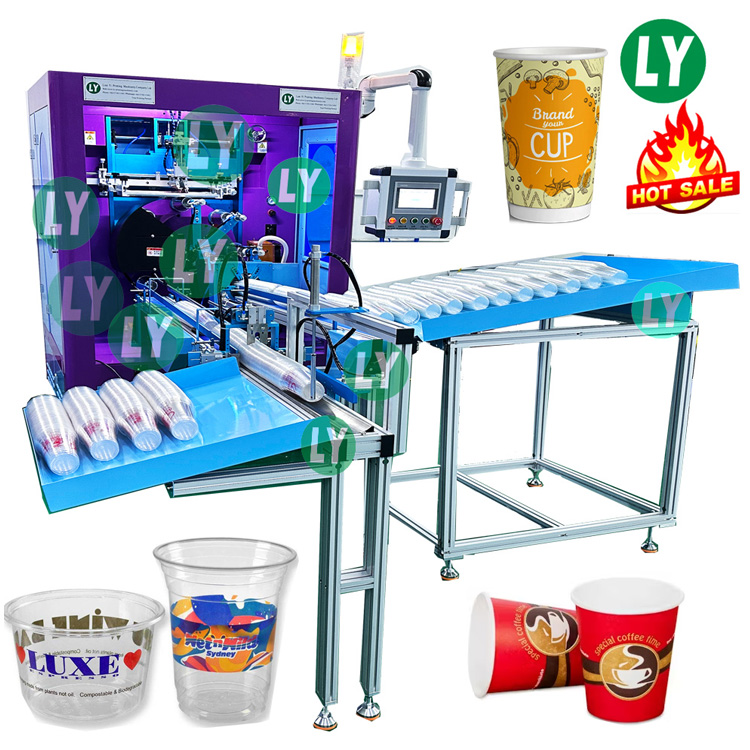

High speed cup multiple color full auto screen printing machine

Description

High speed full servo multilple color full auto screen printing machine  LY-900-TP

 Full automatic working, don't need any worker to operate it , Save labor cost

It is adopted full Servo system to control ,So that print multiple color very precise,It is adopted advanced high sensitive Sensor for making registration by automatically , automatic positioning ,It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color ......

Programming is operated by PLC , inspect everything is very clearly.
Left and right running by full Servo motor,Screen frame moving by servo motor, automatic feeding by servo motor

Application

LY-900-TP is extremely good at 360 degree printing ( full circle), it can print all sizes of cups,from 2oz to 32oz....ETC, also it can print bowls....

Advantages:

All operation is full automatically, no need any people to operate the machine , it can print 4800PCS per hour , with optican sensor ,it can print more than 4 color ,registration is very precise, beautiful printing results.

Tech specification:
Specifications:
1.Model number: LY-900-TP
2.Product appearance: Round
3.Max. Printing diameter: 120mm (360 degree printing)
4.Printing Speed: 4800PC/Hour
5.Machine weight: 920kg
6.Machine size:L3650xW1650xH2050mm
7.Air pressure: 0.5Mpa
8.Voltage power: 220V/ single phase

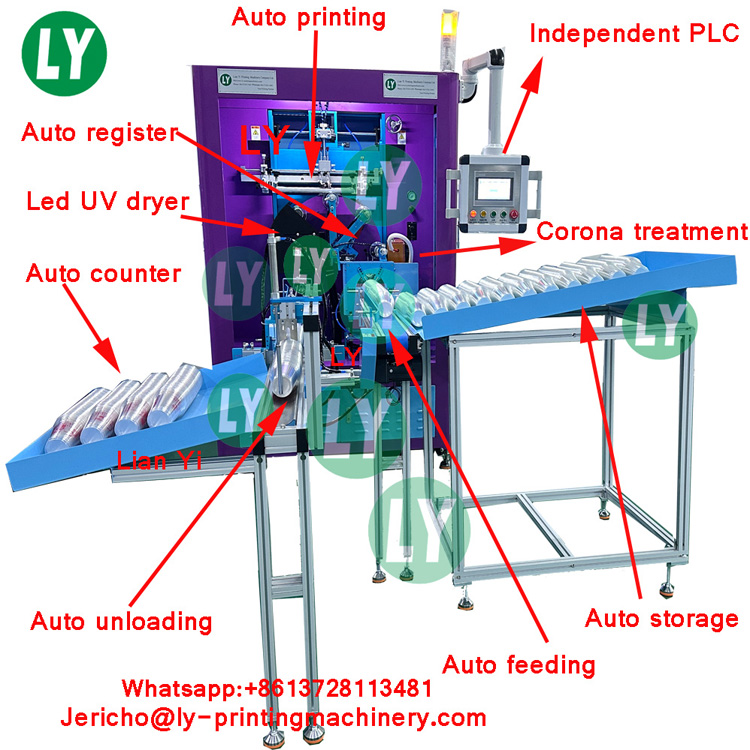

9.With Servo system

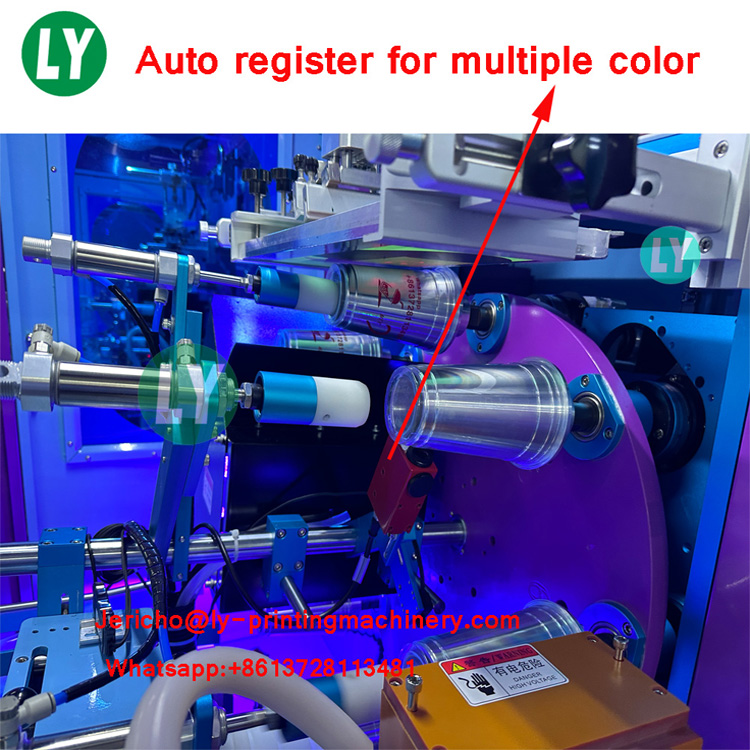

10.With automatic color sensor register for multiple color
11.With auto paper cup line sensor (to avoid printing logo on the paper sealed line )
12.With PLC
13. With automatic counter and auto storage
14.Packing size:L3230*W1650*H 2090mm =11.13CBM
15.Packing weight:1150Kg
16. With Led UV dyer
17.With Automatic feeding and automatic unloading

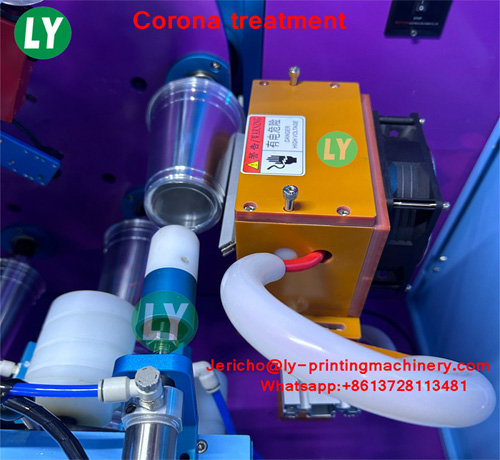

18.It with corona system to process the surface on PP cups ,PE cup
19.It can print all kind of cups ,PET cups ,PP cups , paper cups ,foam cups ,PLA cups....ETC
20 .Full automatic working, don't need any worker to operate it , Save labor cost
21 .With CE certificate
