Cup Multi color full auto screen printer with optical sensor

Description

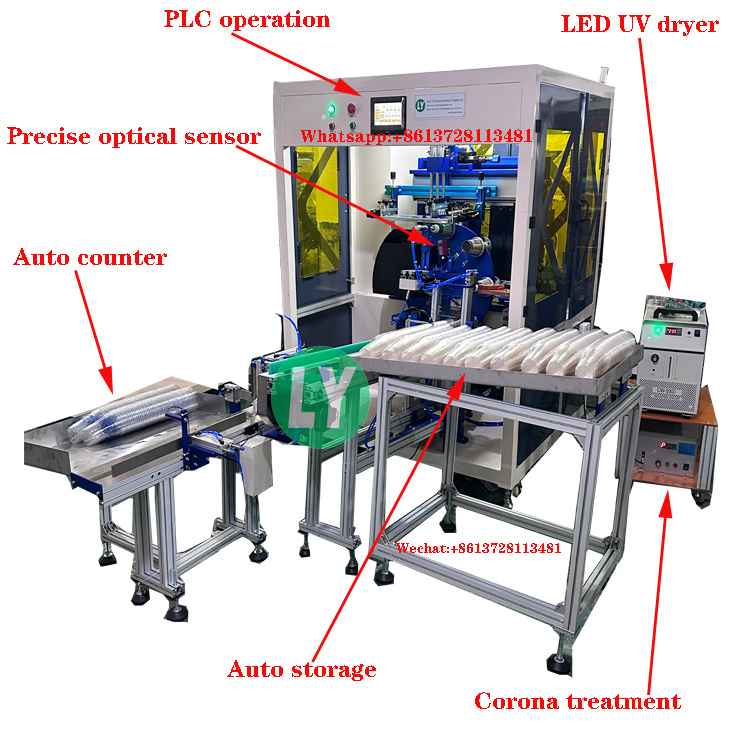

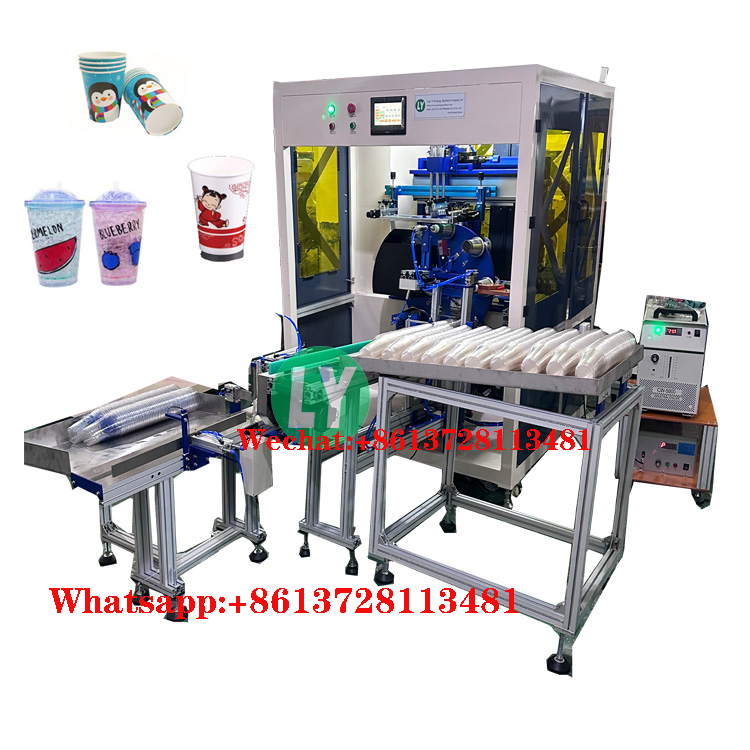

Servo system full automatic color sensor register Cup full auto screen printer with  LED UV dryer  LY-850-UVIR


Full automatic working, don't need any worker to operate it , Save labor cost

It is adopted full Servo system to control ,So that print multiple color very precise,It is adopted advanced high sensitive Sensor for making registration by automatically , automatic positioning ,It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color ......


Programming is operated by PLC , inspect everything is very clearly.
Left and right running by full Servo motor,Screen frame moving by electronic motor.



Application

LY-850-UVIR is extremely good at 360 degree printing ( full circle)and a part of designs on

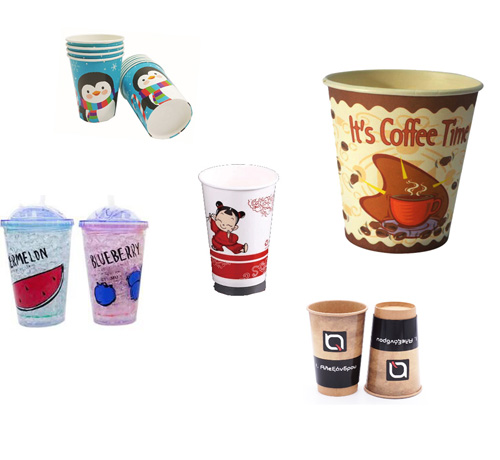

PP cups, PET cups. paper cups, bowls....ETC

Advantages:

We use all main parts are imported directly ,original place.
1.Servo motor is imported from Japanese famous brand Fuji,
2.High precise Sensor is imported from German famous brand Leuze
3.PLC system is imported from Japanese celebrated Hitachi
4.Touch Screen is imported American Guaranteed brand Wigerlon
5.Guide screw is imported great brand TBI from TaiWan.
6.Slide guide is from Hiwin from TaiWan.

Specifications:

1.Model number: LY-850-UVIR
2.Product appearance: Round
3.Max. Printing diameter: 120mm
4.Printing Speed: 3600PC/Hr
5.Machine weight: 800kg
6.Machine size:L3100Xw1520xH1890mm
7.Air pressure: 0.5Mpa
8.Voltage power: 220V/ single phase
9.With Servo system
10.With automatic color sensor register
11.With paper cup line auto sensor avoid printing paper line
12.With PLC

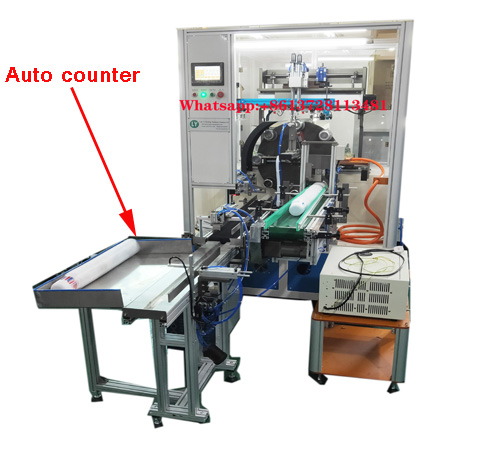

13. With automatic counter and auto storage
14.Packing size:L3230*W1650*H 2090mm =11.13CBM
15.Packing weight:1090Kg

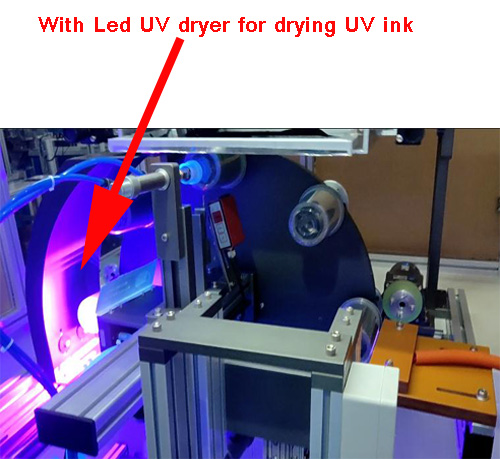

16 With Led UV dyer
17.With Automatic feeding and automatic unloading

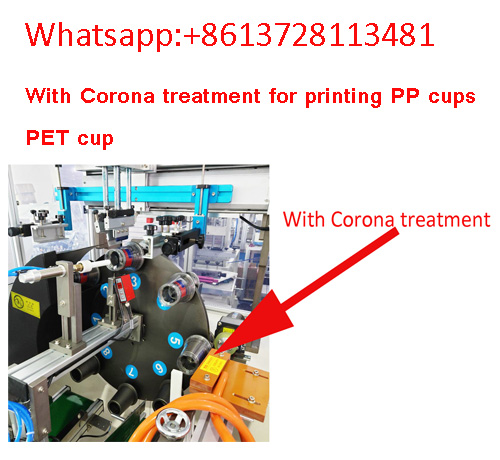

18.It with corona system to process the surface on PP cups ,PE cup

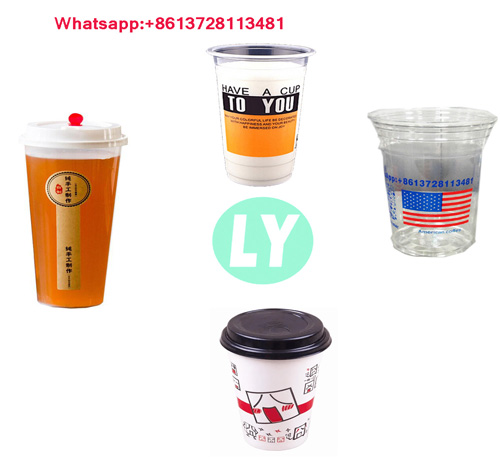

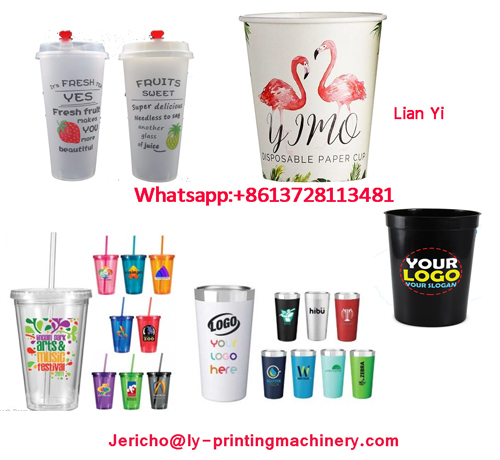

19.It can print all kind of cups ,PET cups ,PP cups , paper cups ,foam cups....ETC
20 Full automatic working, don't need any worker to operate it , Save labor cost
21.With CE certificate
