  > Pad printing machine

•
•
•
•
•
•
•
•
•
•

PRODUCT INTRODUCTION

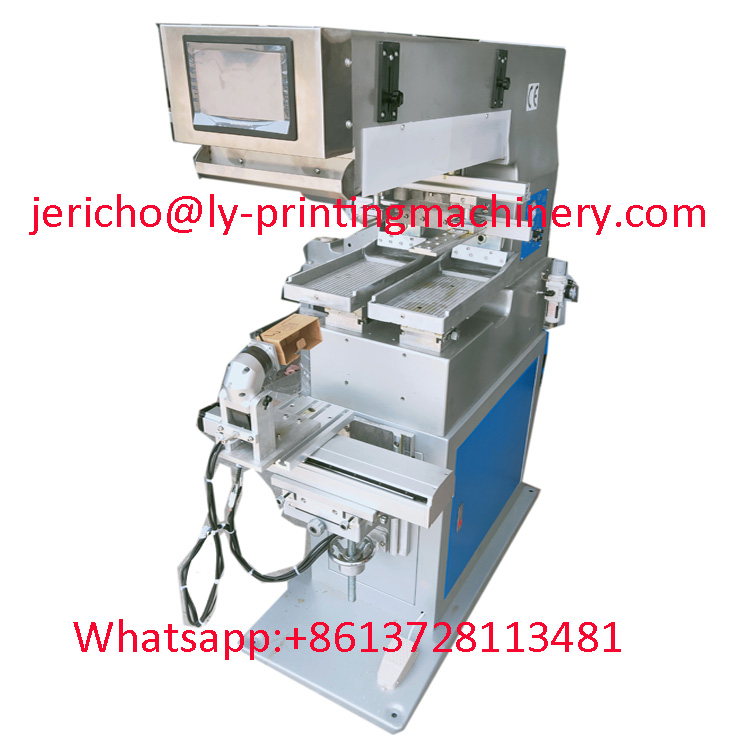

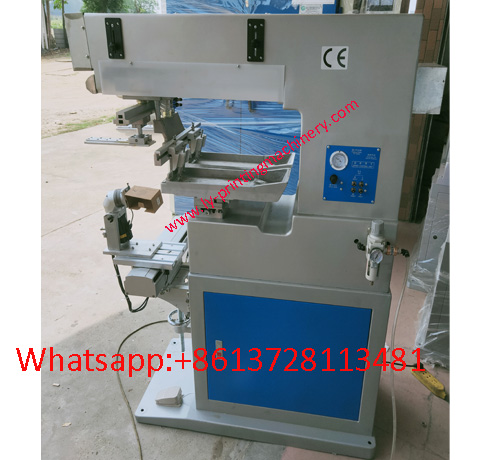

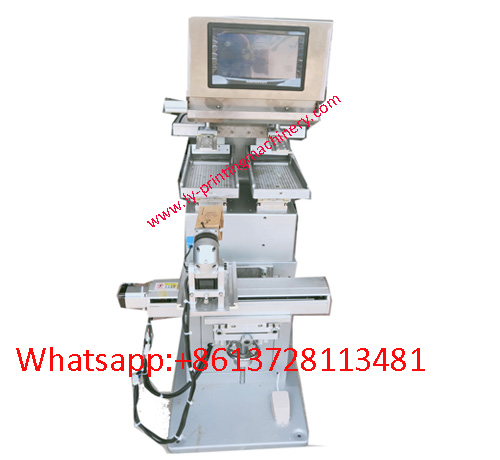

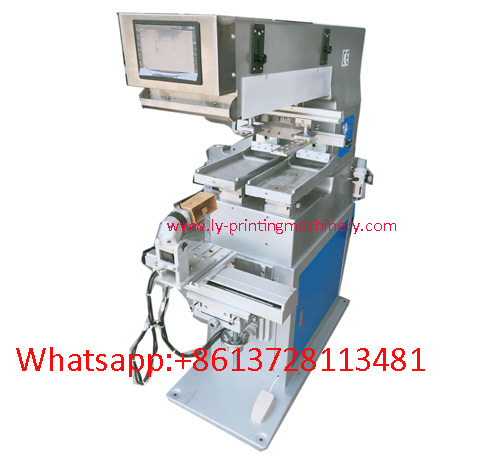

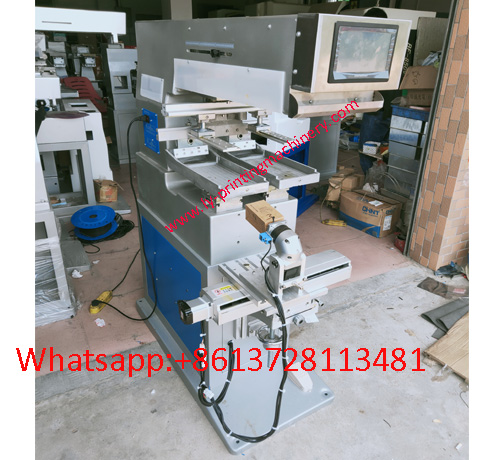

360 degree big size 2 color full Servo system pad printer
LY-MP2-S300 is a fast 2 color full Servo system pad printer . it can be turned any position which place you want to print ,PLC programing ,easy operation

The printing speed can reach 1300-1500PCS/Hour, Running is very stable ,high quality printing , Max printing area: 280x120mm

Application
Printing items: Glass bottles, cups,toys, gift products,promotional items ,face mask , pen, PE products, golf ball package products, , household, stationery, electron products, mobile phone, bottle. Metals products, furniture fittings. ETC.




Specifications
1.Model NO: LY-MP2-S300
2.Operation: Servo
3.Printing Color: 2
4.Plate area: 150*300mm
5.Printing area; 280*120mm
6.Max printing speed: 1300PCS- 1500PCS/Hr
7.With PLC programing
8.Wattage: 220V/ 50HZ Or 110V/60Hz
9.Air pressure: 0.4-0.6Mpa
10.Machine size: L1220*W620*H1510mm

11.Machine weight:230kg

12. Packing size: L1320xW750xH1620mm

13.Packing weight:290Kg

14. With full Servo system running

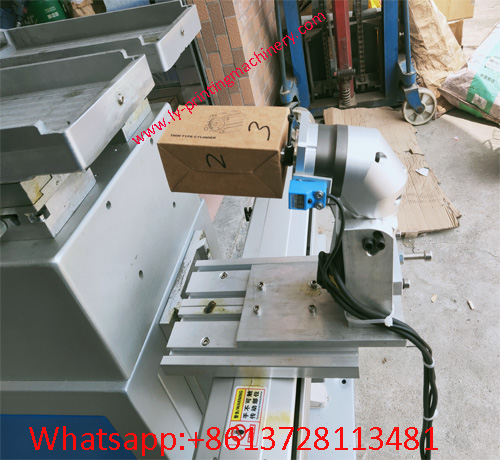

15.180 degree 360 degree printing
