12 color conveyor pad printer
- 12 color pad printer
- 12 color tampo printer
- Conveyor tampo printer
- Big pad printing machine
- Product description: LY-TCY12-200
PRODUCT INTRODUCTION

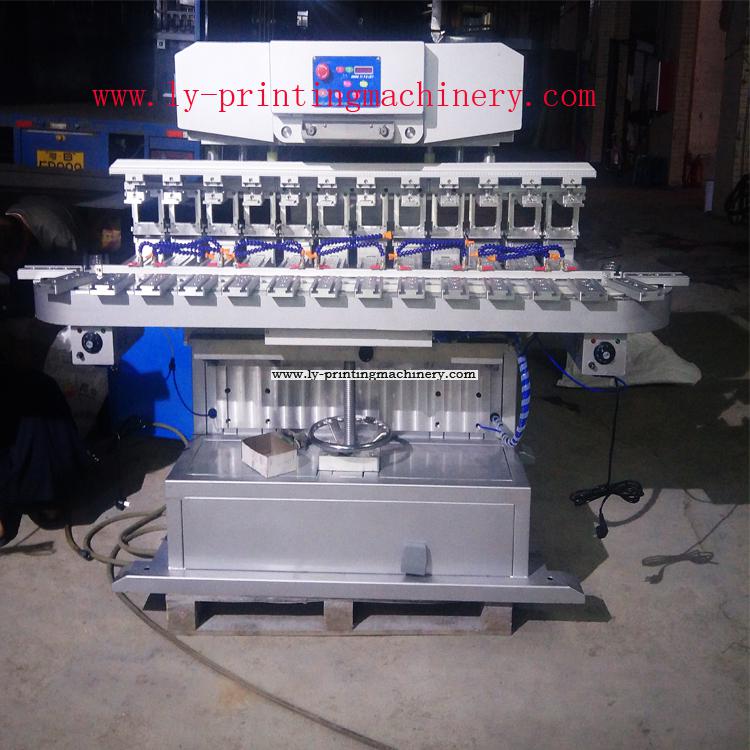

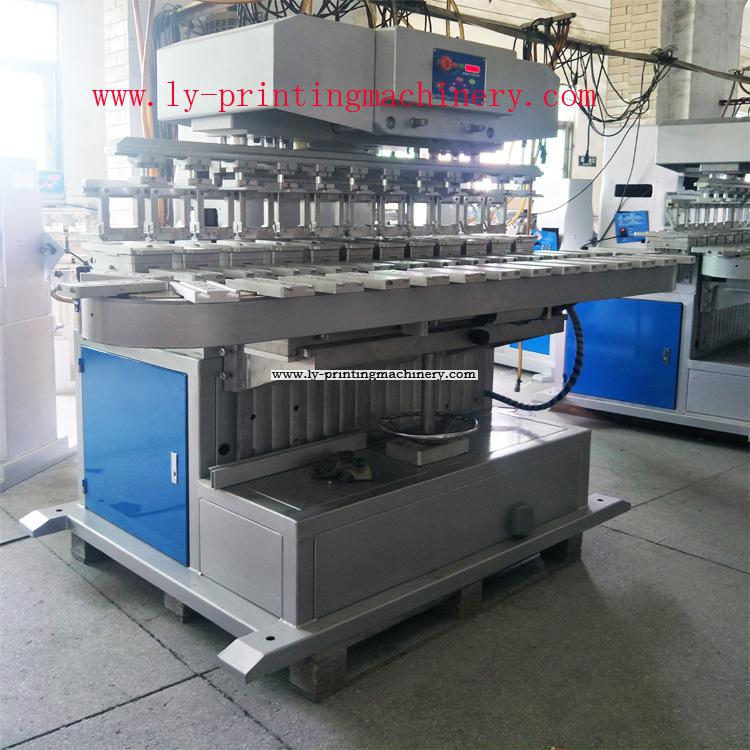

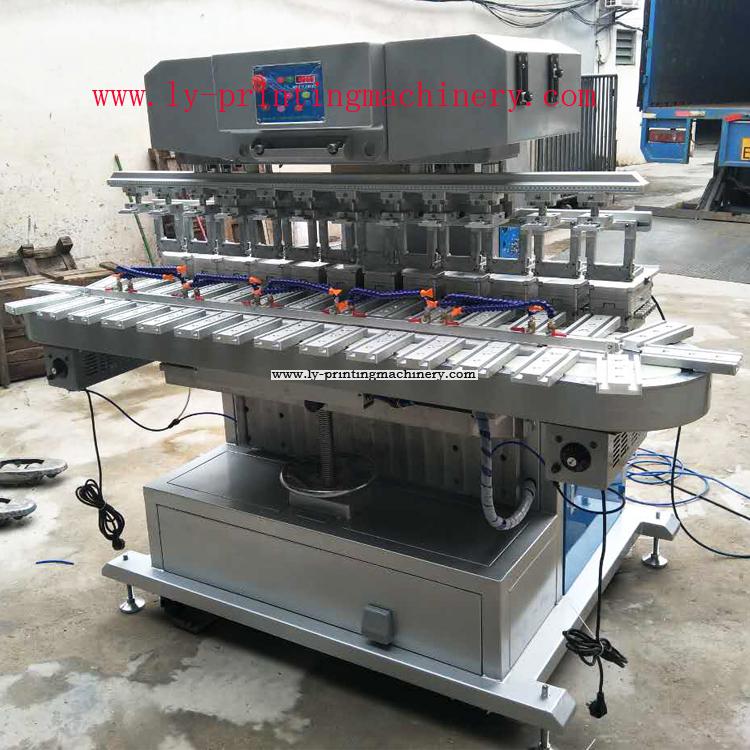

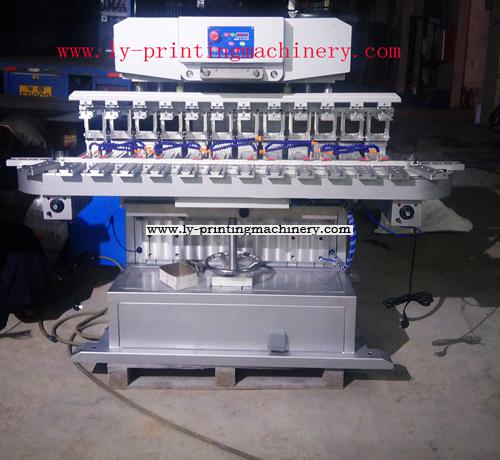

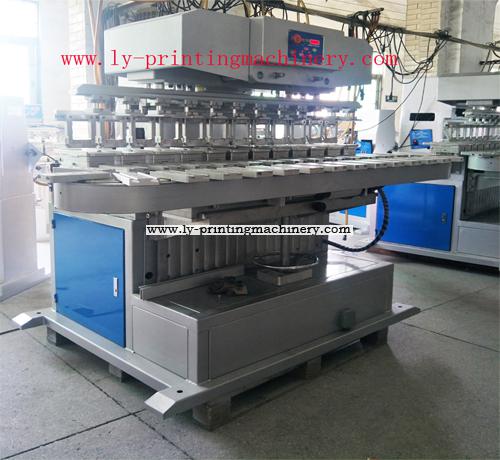

12 color pad printer with conveyor LY-TCY12-200, this machine is adpoted double cylinders from SMC brand, With 30 PCS working positon, so that you can print many quatities at the same time. Machine body is Cast aluminium , so that the life is durable. It is suitable for printing toys, gift products, pen, PE products, golf ball package products, , household, stationery, electron products, mobile phone, bottle. Metals products, furniture fittings. ETC
Specifications︰
1.Max. plate size: 100×200mm;
2.Max. printing area:80×180mm;
3.Max. printing speed: 1300pcs/hr;
4.Air consumption: 169Litre/min(6bar);
5.Colour Number: 12
6.Working positon: 30 PCS
7.Machine body:Cast aluminium
8.With double cylinders from SMC brand
9.With mechanical hand for automatic unloading
10.Machine weight:510Kg
11. Machine size:L1900×W1500×H1600mm
Free parts(Accessories):
12 PCS silicone pads
12 PCS steel plates
12 PCS metal plate for connecting pad
2 PCS Spare cylinders
2 PCS Spare circuit board
1 Kit adjustable tool
Specifications︰
1.Max. plate size: 100×200mm;
2.Max. printing area:80×180mm;
3.Max. printing speed: 1300pcs/hr;
4.Air consumption: 169Litre/min(6bar);
5.Colour Number: 12
6.Working positon: 30 PCS
7.Machine body:Cast aluminium
8.With double cylinders from SMC brand
9.With mechanical hand for automatic unloading
10.Machine weight:510Kg
11. Machine size:L1900×W1500×H1600mm
Free parts(Accessories):
12 PCS silicone pads
12 PCS steel plates
12 PCS metal plate for connecting pad
2 PCS Spare cylinders
2 PCS Spare circuit board
1 Kit adjustable tool
