Servo motor cup bottle screen printer with auto registration

Description

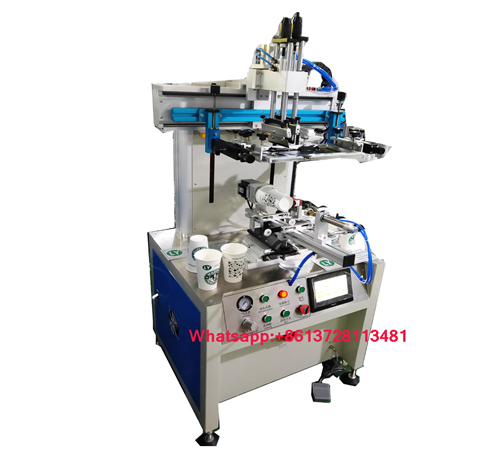

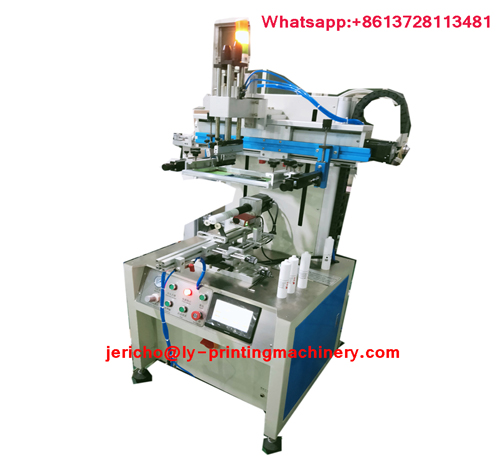

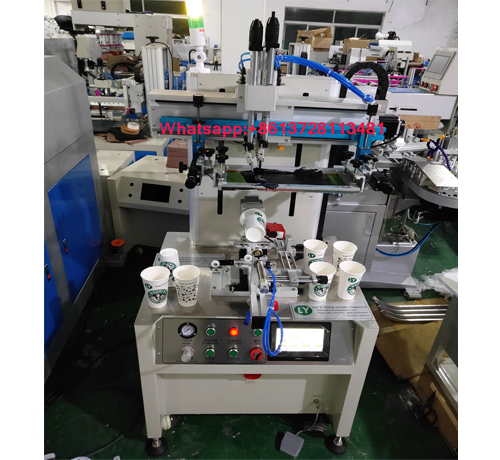

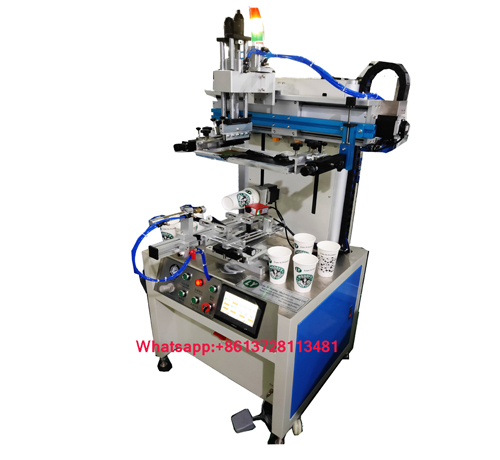

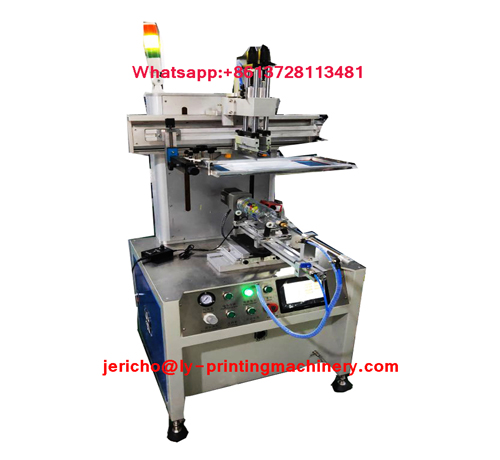

Auto registration Servo system Cylindrical Silk Screen Printing Machine LY-4AS

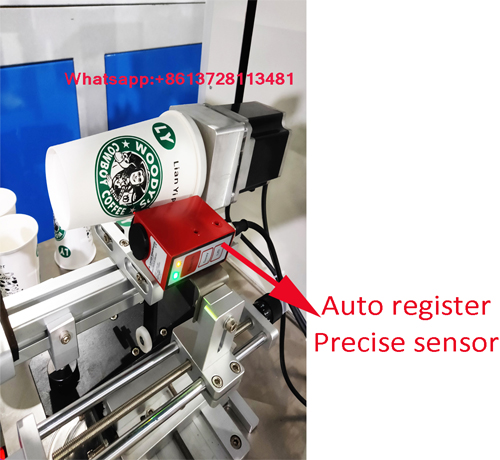

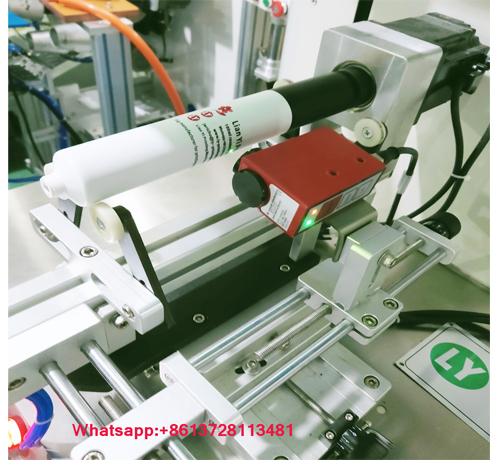

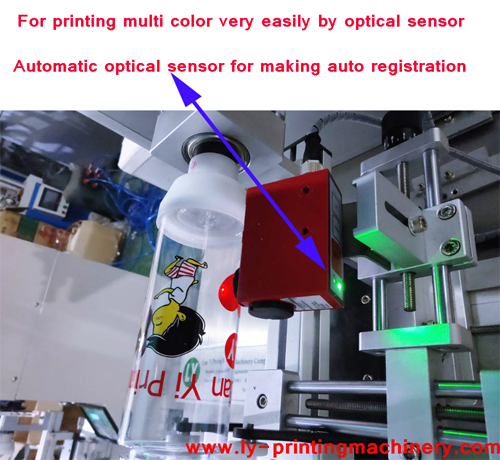

LY-4AS is a new technology cylindrical silk screen printing machine , It is adopted full Servo system to control ,So that print multiple color very precise，It is adopted advanced high sensitive Sensor for making registration by automatically , automatic positioning ，It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color ......

Programming is operated by PLC , inspect everything is very clearly.
Left and right running by full Servo motor,Screen frame moving by electronic motor.

Application

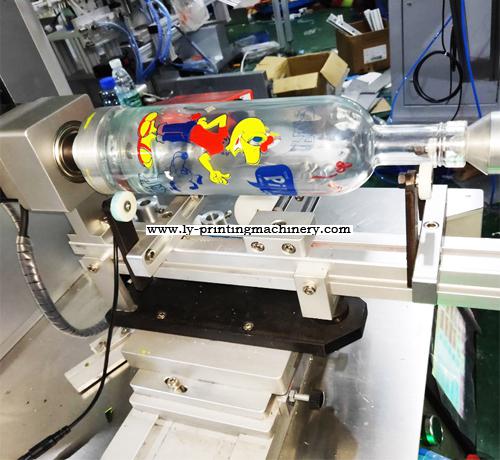

LY-4AS is extremely good at 360 degree printing ( full circle)and a part of designs on Cups ,Bottles,bowls ,Soft tubes ,Pots,Jars, Oil filters,Balls,Pens and other round items.

It is suitable for printing all kinds of materials,Such as, Plastic, Glass,Wood,Metal......Etc

Advantages:
We use all main parts are imported directly ,original place.

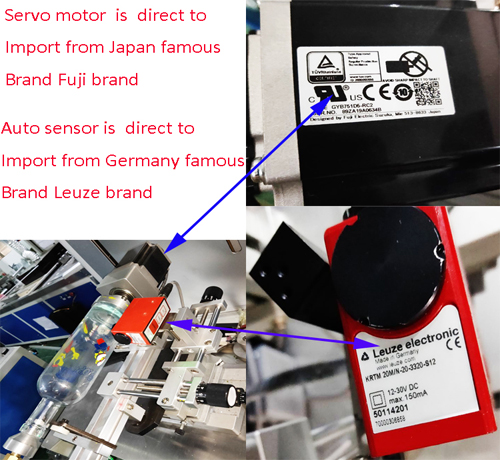

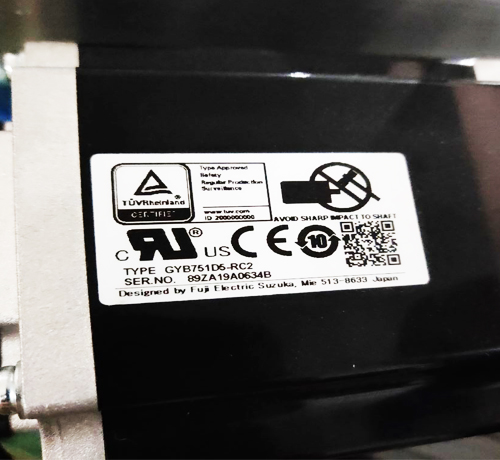

1.Servo motor is imported from Japanese famous brand Fuji,

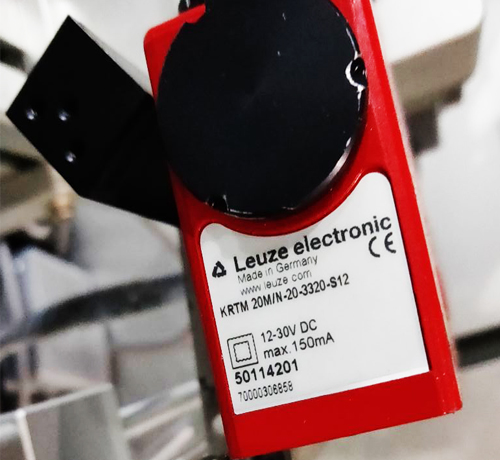

2.High precise Sensor is imported from German famous brand Leuze
3.PLC system is imported from Japanese celebrated Hitachi
4.Touch Screen is imported American Guaranteed brand Wigerlon
5.Guide screw is imported great brand TBI from TaiWan.
6.Slide guide is from Hiwin from TaiWan.


Tech specification:
1.Model number:LY-4AS
2.Product appearance: Round /oblate
3.(Round)Max. Printing diameter: Φ120mm (360 degree full circle)
4.(Round)Max printing arc length: L: 370mm
5.(Oblate)Max printing diameter: 500mm
6.Printing Speed: 1700 PC/Hr
7.Air pressure: 0.5Mpa

8. Voltage power: 220V/ 50HZ or 110V/60HZ

9. Machine Weight: 260kg

10. Machine dimension：L1120xW770xH1530mm

11.Packing weight:300Kg
12.Packing size: L1050xW1000xH1720mm=1.80CBM

13. With full Servo motor running  (Japanese famous brand Fuji)

14. PLC programming to control   (Japanese celebrated Hitachi)

15. With high precise optical sensor  (German famous brand Leuze)

Printing videos on Youtube:

For printing 3 color on paper bowls and paper cups

https://www.youtube.com/watch?v=1kJAg56VAmc

https://www.youtube.com/watch?v=tPBJ1T2_1VE

For printing 2 color on paper cups

https://www.youtube.com/watch?v=BM1CIIUYfrU

https://www.youtube.com/watch?v=CskDmZ3uEuA

For printing 3 color on big plastic bottles

https://www.youtube.com/watch?v=BRA7H1B6J5c&t=25s

For printing PET PP transparent plastic cups 4 color

https://www.youtube.com/watch?v=9p9ir0kX8is

For printing Paper bowl paper container 2 color

https://www.youtube.com/watch?v=n_x8In_B-7s

For printing 4 color on plastic  bottle

https://www.youtube.com/watch?v=lu4ZLhhrn7I&t=242s

For printing cosmetic soft tube 2 color

https://www.youtube.com/watch?v=_gqkSJR6QT4

For printing precise samll pattern with 3 color on plastic cup

https://www.youtube.com/watch?v=ssjYqvzAqcA&t=165s

For printing 4 color on glass cup
https://www.youtube.com/watch?v=YpLVwVF6a3w

For printing 2 color on Plastic cup

https://www.youtube.com/watch?v=NRXge_ItgtU

For printing 4 color on glass beer bottle
https://www.youtube.com/watch?v=JCknwXsNFYo

For printing 5 color on metal bottle

https://www.youtube.com/watch?v=plS-tVBoP60

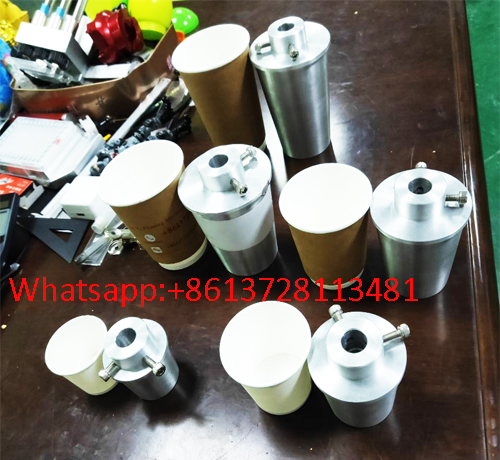

Jigs (molds) of cup

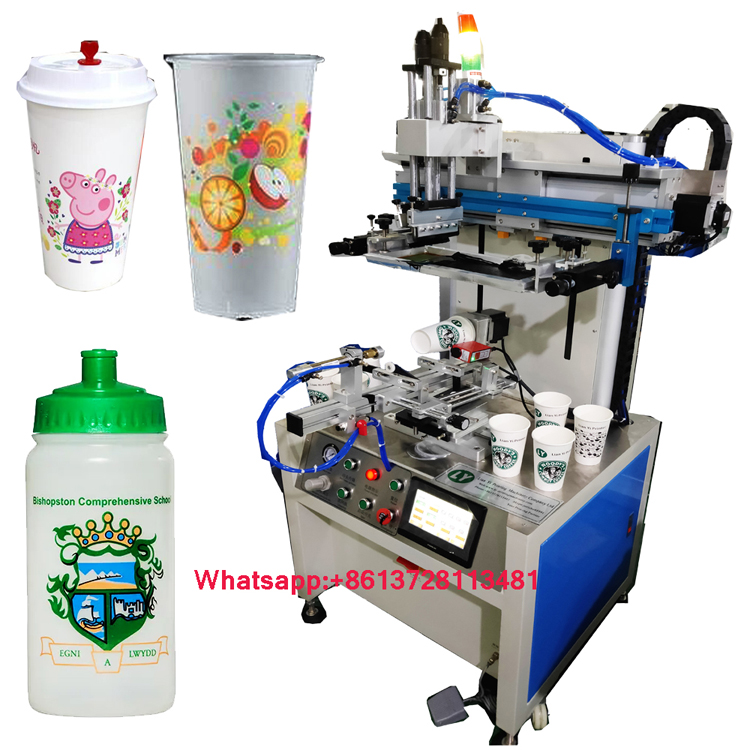

Printing samples
