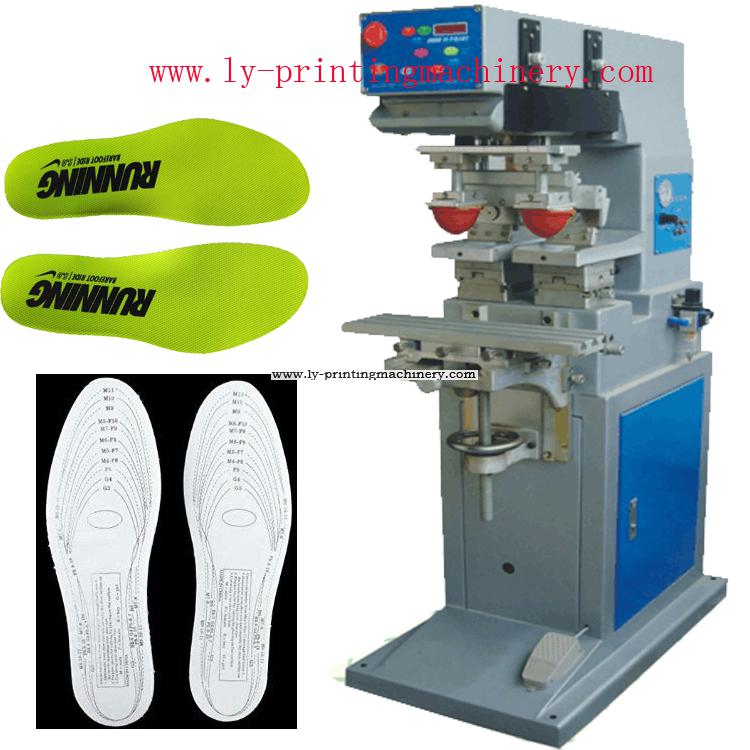

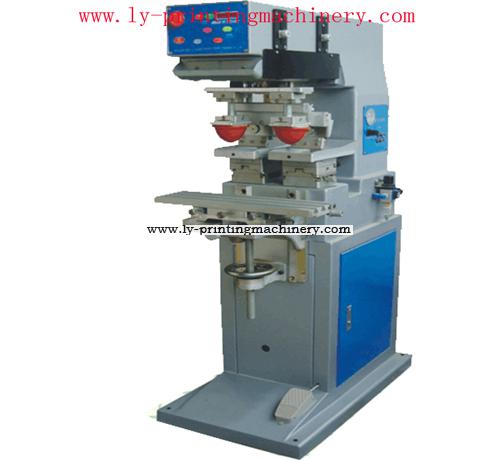

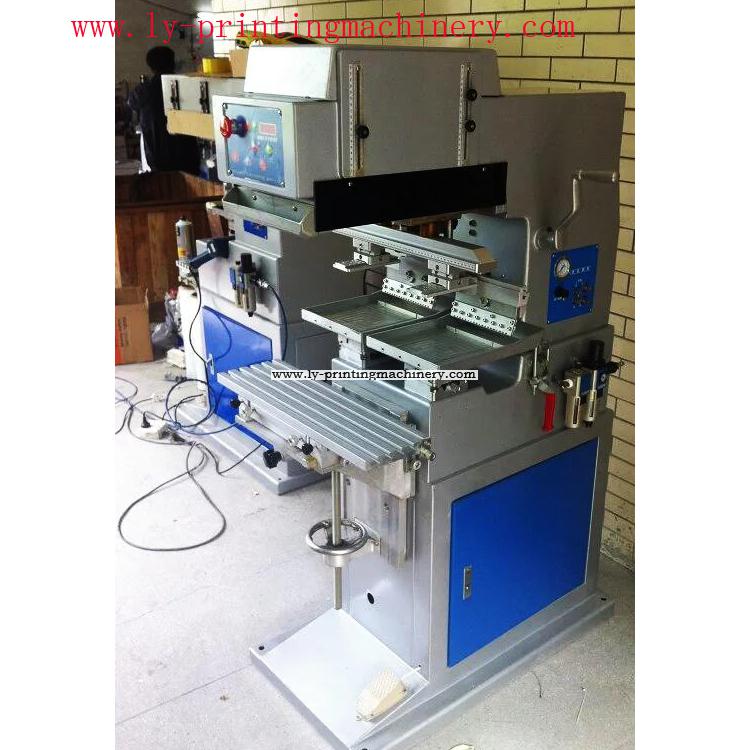

Double head 1 color pad printer for insole
- 2 head 1 color pad printer
- double head tampo printer
- insole pad printer
- Print 2 PCS at the same time
- Product description: LY-MP1-350D2
PRODUCT INTRODUCTION
Description:
Semi-automatic 1 color pad printer with double –head pad printing, there are 2 pcs positon for printing items at the same time, it could be acted as two pieces of single colors pad printer, it is featured by the higher working capacity. It is also suitable for those products with high printing size requirements. The ink tray and rubber pads could be changed for multi color’s printing. Widely used for logo printing on surface such as insole ,electronic products, plastic shell, hardware products, stationary, gift set, artistic products, toys etc.

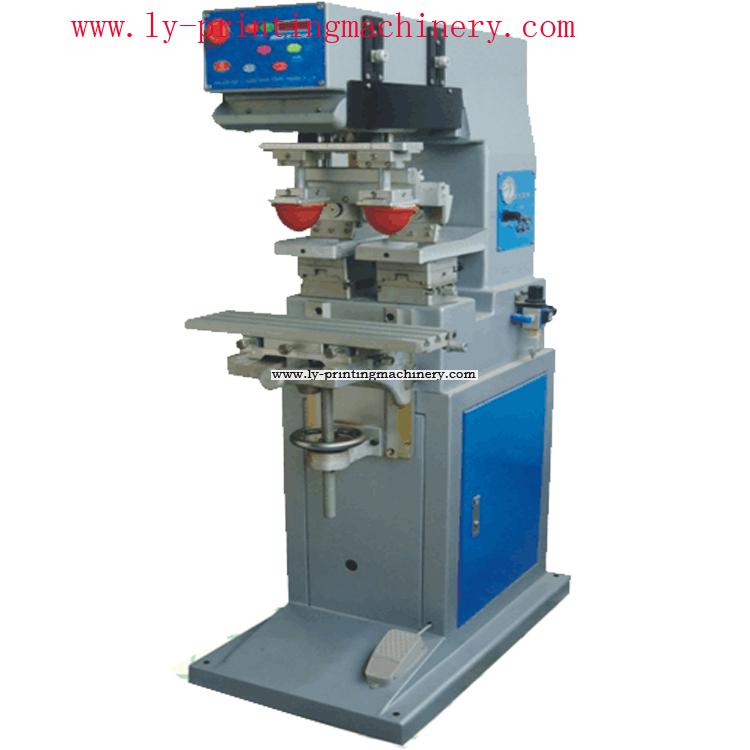

1-Color Double Head Pad Printing machinery
1. Controlled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.
Advantages:
1.Microprocessor control for each function makes operation easy;
2.4-Digit auto counter built-in;
3.Coin aluminium structure ensures sturdiness operation;
4.ink roller used for ink applying is easy to remove and clean;
5.Independent stroke and speed adjustment for pad up/down;
6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7.Adjustable printing speed meets different printing requirements;
8.It is available that ink roller keeps working while pad doesn't lower down that so that ink will not easily become dry
Specifications
1. Model NO: LY-MP1-100D2
2. Operation: Pneumatic
3. Colors: 1
4. Plate area: 100*100 mm
5. Max Printing area: 80*80mm
6. Max printing station: 2Pcs
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ 110V/60HZ
9. Air pressure: 0.4-0.6Mpa
10. Machine size: 870x560x1400mm(LxWxH)
11. Machine weight: 105KG
1. Model NO: LY-MP1-150D2
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*150 mm
5. Max Printing area: 80*130mm
6. Max printing station: 2Pcs
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ 110V/60HZ
9. Air pressure: 0.4-0.6Mpa
10. Machine size: 870x560x1400mm(LxWxH)
11. Machine weight: 1250KG
1. Model NO: LY-MP1-100D2
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*200 mm
5. Max Printing area: 80*180mm
6. Max printing station: 2Pcs
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ 110V/60HZ
9. Air pressure: 0.4-0.6Mpa
10. Aachine size: 870x560x1400mm(LxWxH)
11. Machine weight: 130KG

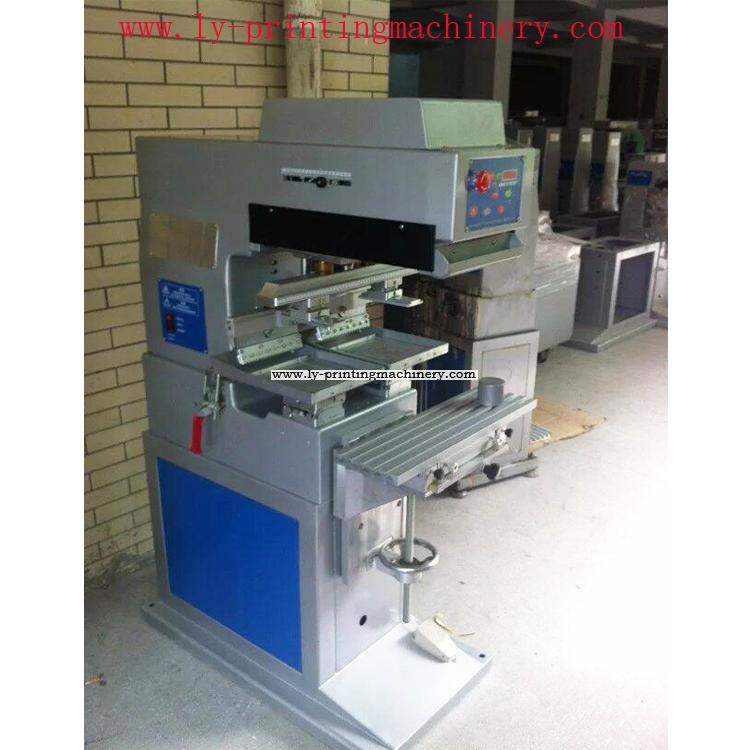

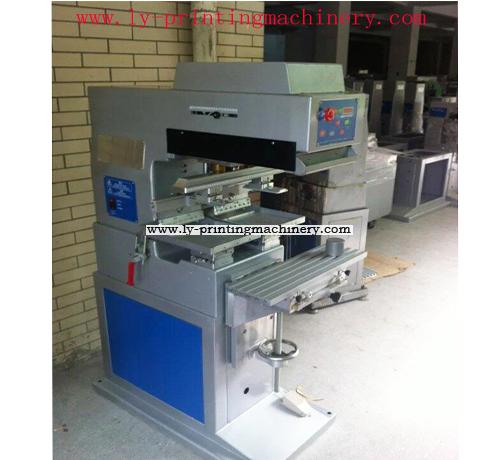

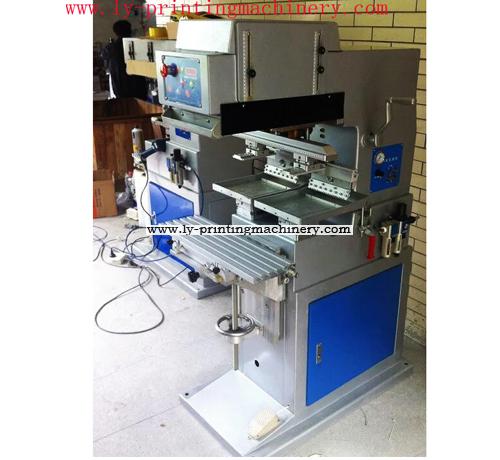

For printing insole
1. Model NO: LY-MP1-350D2
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*350 mm
5. Max Printing area: 80*300mm
6. Max printing station: 2Pcs
7. Max printing speed: 2000PCS/H
8. Wattage: 220V/ 50HZ 110V/60HZ
9. Air pressure: 0.4-0.6Mpa
10. Aachine size: 870x660x1400mm(LxWxH)
11. Machine weight: 150KG

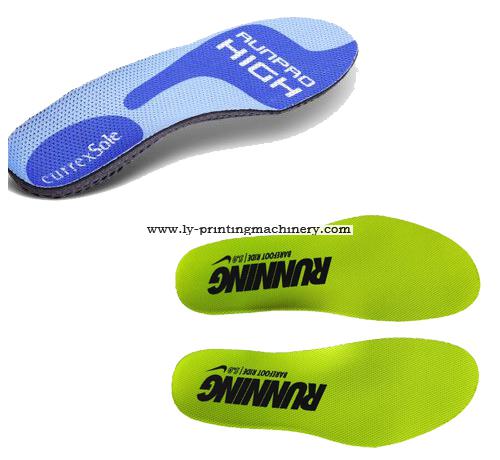

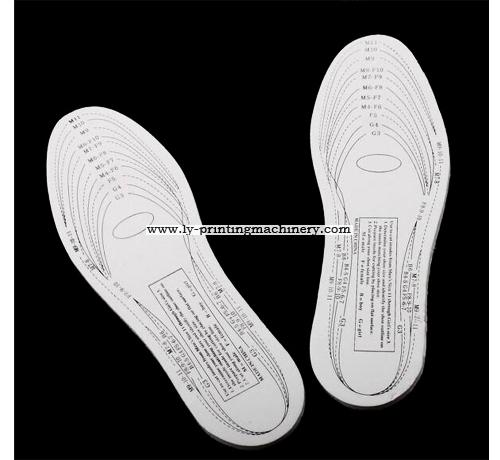

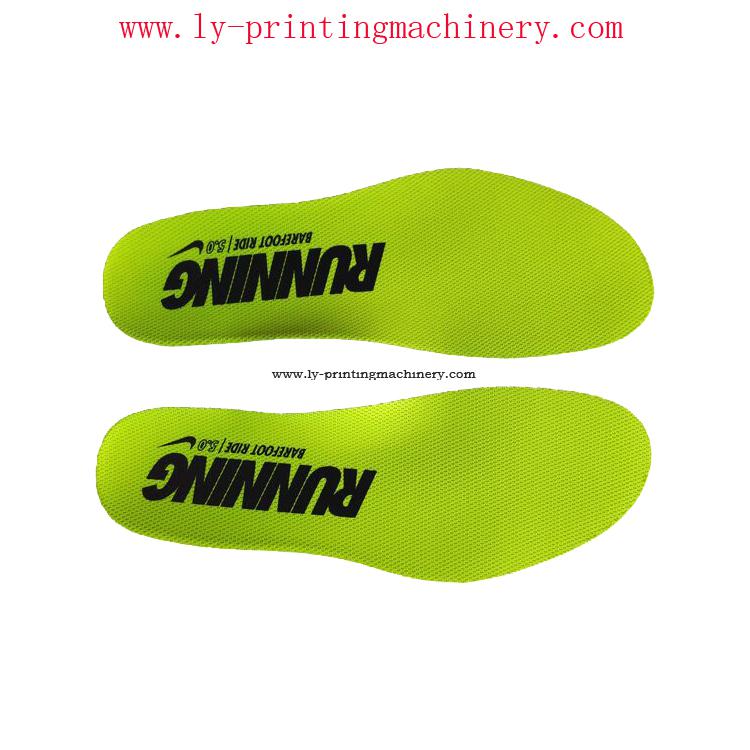

Printing sampes
